TYM T413

The TYM T413 is a tractor produced by Tym. It is equipped with a 134.3 ci 2.2 L engine. The listed engine power is Diesel (listed): 41 hp / 30.6 kW. Transmission: 16 forward and reverse. Operating weight: 3673 lbs 1666 kg.

Engine Power
Diesel (listed): 41 hp / 30.6 kW
Fuel & Capacities
Diesel
Transmission
16 forward and reverse
Operating Weight
3673 lbs 1666 kg

Overview

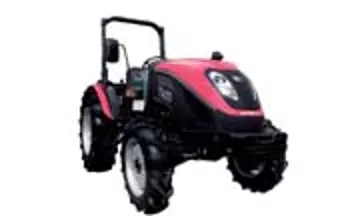

TYM T413 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
TYM T413 Engine
2.2L diesel
Engine details ...
TYM T413 Transmission
16-speed
Transmission details ...
TYM T413 Power
Engine
41 hp 30.6 kW
Mechanical
Four-wheel drive
Two-post ROPS.
Power Take-off (PTO)
Rear PTO Type
538/770/1040
Dimensions & Tires
Weight
3673 lbs 1666 kg
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 134.3 ci / 2.2 L Diesel

Fuel Type
Diesel
Configuration
liquid-cooled
Displacement
134.3 ci 2.2 L
Power
41 hp 30.6 kW
Rated RPM
2200
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

TYM T413 Tires
Dimensions
Length
139 inches 353 cm
Width
63.4 inches 161 cm
Height (ROPS)
101.2 inches 257 cm
Weight
3673 lbs 1666 kg

Photos

TYM T413 tractor photo

TYM T413 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T413 based on its 41 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T413.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T413 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T413.

Converted Equivalents:

Horsepower (HP)41 hp
Kilowatts (kW)30.6 kW
Metric Horsepower (PS / CV)41.6 PS
