TYM T431

The TYM T431 is a tractor produced by Tym. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (listed): 43 hp / 32.1 kW. Transmission: 16 forward and reverse. Operating weight: 5073 lbs 2301 kg.

Engine Power
Diesel (listed): 43 hp / 32.1 kW
Fuel & Capacities
12.7 gal 48.1 L
Transmission
16 forward and reverse
Operating Weight
5073 lbs 2301 kg

Overview

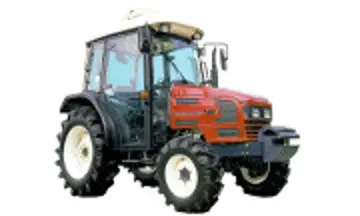

TYM T431 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
Variants
T430
ROPS
T431
Cab
TYM T431 Engine
Kubota 2.2L 4-cyl diesel
Fuel tank
12.7 gal 48.1 L
Engine details ...
TYM T431 Transmission
16-speed synchromesh
Transmission details ...
TYM T431 Power
Engine
43 hp 32.1 kW
Mechanical
Four-wheel drive
Differential lock
mechanical rear
Steering
power
Wet disc brakes
Cab standard.
Hydraulics
Pump flow
13 gpm 49.2 lpm
Tractor hitch
Control
position and draft control
Rear lift
2750 lbs 1247 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
565/677/1016/1270 (1.375)
Dimensions & Tires
Wheelbase
75 inches 190 cm
Weight
5073 lbs 2301 kg
Front tire
9.5-16
Rear tire
13.6-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
T431 references literature
Millennium 2000 published by ITC International

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer
Kubota V2203
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
134.1 ci 2.2 L
Bore/Stroke
3.4x3.6 inches 86 x 91 mm
Power
43 hp 32.1 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse synchromesh

Type
synchromesh
Gears
16 forward and reverse
Clutch
dry disc

Dimensions

TYM T431 Tires
Ag front
9.5-16
Ag rear
13.6-24
Dimensions
Wheelbase
75 inches 190 cm
Length
141 inches 358 cm
Width
63 inches 160 cm
Height (cab)
96 inches 243 cm
Weight
5073 lbs 2301 kg
Ground clearance
13 inches 33 cm
Front tread
52 inches 132 cm
Rear tread
50 inches 127 cm

Photos

TYM T431 tractor photo

TYM T431 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T431 based on its 43 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T431.

Estimated Continuous Field Runtime: 5.7 hrs

Approximately 5.7 hours of continuous field operation at ~75% rated power on a full tank (12.7 gal / 48.1 L).

Estimated 75% Load Fuel Burn~2.2 gal/hr (8.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T431 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T431.

Converted Equivalents:

Horsepower (HP)43 hp
Kilowatts (kW)32.1 kW
Metric Horsepower (PS / CV)43.6 PS
