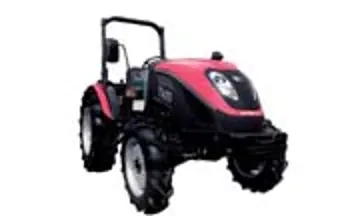

TYM T453
The TYM T453 is a tractor produced by Tym. It is equipped with a 133.6 ci 2.2 L engine. The listed engine power is Diesel (listed): 43 hp / 32.1 kW. Transmission: 16 forward and reverse. Operating weight: 4151 lbs 1882 kg.
Engine Power
Diesel (listed): 43 hp / 32.1 kW
Fuel & Capacities
15.9 gal
60.2 L
Transmission
16 forward and reverse
Operating Weight
4151 lbs
1882 kg
Overview
![]() | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
TYM T453 Engine | |
|---|---|
Yanmar 2.2L 4-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ... | |
TYM T453 Transmission | |
|---|---|
16-speed | |
Transmission details ... |
TYM T453 Power | |
|---|---|
Engine | 43 hp
32.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 559/800/1080 |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Weight | 4151 lbs
1882 kg |
Front tire | 9.5-16 |
Rear tire | 13.6-26 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 133.6 ci / 2.2 L Diesel
Manufacturer | Yanmar |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133.6 ci
2.2 L |
Power | 43 hp
32.1 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Dimensions
TYM T453 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-16. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Length | 139 inches
353 cm |
Width | 66.1 inches
167 cm |
Height (ROPS) | 94.9 inches
241 cm |
Weight | 4151 lbs
1882 kg |
Ground clearance | 14.2 inches
36 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T453 based on its 43 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T453.
Estimated Continuous Field Runtime: 7.1 hrs
Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Estimated 75% Load Fuel Burn~2.2 gal/hr (8.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T453 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T453.
Converted Equivalents:
Horsepower (HP)43 hp
Kilowatts (kW)32.1 kW
Metric Horsepower (PS / CV)43.6 PS
