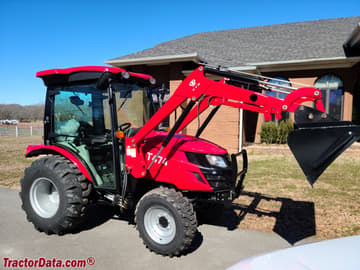

TYM T474
The TYM T474 is a tractor produced by Tym. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (gross): 48.3 hp / 36.0 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3230 to 3605 pounds.
Engine Power
Diesel (gross): 48.3 hp / 36.0 kW
Fuel & Capacities
9 gal
34.1 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
3230 to 3605 pounds
Overview

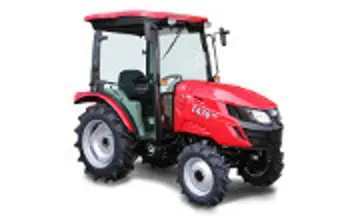

![]() | 2019 -
Compact Utility tractor |
|---|---|
2019 - | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T474 Engine | |
|---|---|
Kukje 2.3L 4-cyl diesel | |
Fuel tank | 9 gal
34.1 L |
Engine details ... | |
TYM T474 Power | |
|---|---|
Engine (gross) | 48.3 hp
36.0 kW |
Mechanical | |
|---|---|
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 6.4 gpm
24.2 lpm |
Total flow | 11 gpm
41.6 lpm |
Steering flow | 4.6 gpm
17.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 2646 lbs
1200 kg |
Rear lift (at 24"/610mm) | 1764 lbs
800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 68.9 inches
175 cm |
Weight | 3230 to 3605 pounds |
Front tire | 8.0-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 70 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Operator's Manual for Tractor T474 HST published in 2019* | |
*Publication contains known errors. |
Engine
Engine Detail — 139.5 ci / 2.3 L Diesel
Manufacturer | Kukje A2300N4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 139.5 ci
2.3 L |
Bore/Stroke | 3.465x3.701 inches
88 x 94 mm |
Power (gross) | 48.3 hp
36.0 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Torque | 108 lb-ft
146.4 Nm |
Torque RPM | 1550 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 4.75 qts*The specification section of the operator manual lists 6.8 US quarts. Readers report this results in overfill. A different capacity is listed in the engine service section of the manual.
4.5 L |
Coolant capacity | 6.9 qts
6.5 L |
Transmission
Transmission options | |
|---|---|
12-speed shuttle | |
hydrostatic |
Transmission — 12 forward and reverse shuttle
Type | shuttle |
Gears | 12 forward and reverse |
Oil capacity | 37 qts
35.0 L |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
TYM T474 Tires | |
|---|---|
Standard tires (ag) | Front: 8.0-16. Rear: 12.4-24 |
Industrial front | 27x10.5-15 |
Industrial rear | 12.5x20 |
Dimensions | |
|---|---|
Wheelbase | 68.9 inches
175 cm |
ROPS Length | 131 inches
332 cm |
Cab Length | 133 inches
337 cm |
ROPS Width | 54.5 inches
138 cm |
Cab Width | 59 inches
149 cm |
Height (ROPS) | 94.4 inches
239 cm |
Height (cab) | 92.5 inches
234 cm |
ROPS Weight | 3230 lbs
1465 kg |
Cab Weight | 3605 lbs
1635 kg |
Ground clearance | 12.8 inches
32 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T474 based on its 48.3 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T474.
Estimated Continuous Field Runtime: 3.6 hrs
Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (9 gal / 34.1 L).
Estimated 75% Load Fuel Burn~2.5 gal/hr (9.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T474 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T474.
Converted Equivalents:
Horsepower (HP)48.3 hp
Kilowatts (kW)36 kW
Metric Horsepower (PS / CV)49 PS
