TYM T433

The TYM T433 is a tractor produced by Tym. It is equipped with a 135.2 ci 2.2 L engine. The listed engine power is Diesel (gross): 42.7 hp / 31.8 kW. Transmission: 16 forward and reverse. Operating weight: 1102 lbs 499 kg.

Overview

	2006 - 2015 400 SeriesCompact Utility tractor
2006 - 2015
400 Series
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T433 Engine
Caterpillar 2.2L 4-cyl diesel
Engine details ...

TYM T433 Transmission
16-speed sync shuttle
Transmission details ...

TYM T433 Power
Engine (gross)	42.7 hp 31.8 kW
PTO (claimed)	34.4 hp 25.7 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Capacity
Fuel	17 gal 64.3 L
Hydraulic system	9.2 gal 34.8 L
Front axle	10.5 qts 9.9 L

Hydraulics
Type	dual gear pump
Capacity	9.2 gal 34.8 L
Valves	2
Pump flow	8.8 gpm 33.3 lpm
Total flow	13.4 gpm 50.7 lpm
Steering flow	4.6 gpm 17.4 lpm

Tractor hitch
Rear Type	1
Control	position and draft control
Rear lift (at ends)	2875 lbs 1304 kg
Rear lift (at 24"/610mm)	2105 lbs 954 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	76.2 inches 193 cm
Weight	4140 to 4559 pounds
Front tire	8.0-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Charging volts	12
Battery volts	12

Engine

Engine Detail — 135.2 ci / 2.2 L Diesel

Manufacturer	Caterpillar C2.2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Depending on market, this engine was also branded as a Perkins 404D-22.
Displacement	135.2 ci 2.2 L
Power (gross)	42.7 hp 31.8 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Rated RPM	2600
Firing order	1-3-4-2
Starter volts	12
Oil capacity	7.1 qts 6.7 L
Coolant capacity	9 qts 8.5 L

Transmission

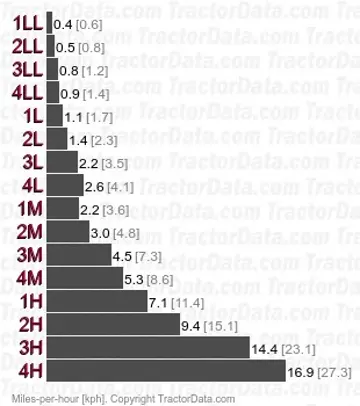

Transmission — 16 forward and reverse sync shuttle

Type	sync shuttle
Gears	16 forward and reverse
Clutch	single dry disc
Oil capacity	36.8 qts 34.8 L
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range.

Dimensions

TYM T433 Tires
Ag front	8.0-16
Ag rear	13.6-24
Industrial front	12-16.5
Industrial rear	17.5L-24

Dimensions
Wheelbase	76.2 inches 193 cm
Length	141.3 inches 358 cm
Width	62.6 inches 159 cm
Height (ROPS)	101.9 inches 258 cm
Height (cab)	99.6 inches 252 cm
ROPS Weight	4140 lbs 1877 kg
Cab Weight	4559 lbs 2067 kg
Ground clearance	13.8 inches 35 cm

Attachments

Attachment overview
TYM LT500 loader
TYM TX5000 loader
Backhoe

TYM BT400 Backhoe
Backhoe type	TYM BT400 Backhoe
Weight	1102 lbs 499 kg
2-Foot flat digging depth	94.4 inches 239 cm
Reach from pivot	136.1 inches 345 cm
Loading height	80.3 inches 203 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	4151 lbs 1882 kg
Dipperstick force	2660 lbs 1206 kg

Photos

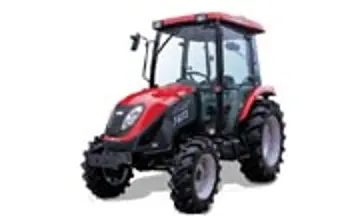

TYM T433 tractor photo
