TYM T494

The TYM T494 is a tractor produced by Tym. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (gross): 48.3 hp / 36.0 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 4012 to 4277 pounds.

Overview

	2019 - Compact Utility tractor
2019 -
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T494 Engine
Kukje 2.3L 4-cyl diesel
Fuel tank	17 gal 64.3 L
Engine details ...

TYM T494 Power
Engine (gross)	48.3 hp 36.0 kW

Mechanical
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pump flow	9.5 gpm 36.0 lpm
Total flow	14.5 gpm 54.9 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	3918 lbs 1777 kg
Rear lift (at 24"/610mm)	2945 lbs 1335 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	76.2 inches 193 cm
Weight	4012 to 4277 pounds
Front tire	9.5-16
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	70
Battery volts	12

References
Operator's Manual for Tractor T494 and T574 HST

Engine

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer	Kukje A2300N5
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	139.5 ci 2.3 L
Bore/Stroke	3.465x3.701 inches 88 x 94 mm
Power (gross)	48.3 hp 36.0 kW
Air cleaner	dry
Rated RPM	2600
Torque	108 lb-ft 146.4 Nm
Torque RPM	1550
Starter	electric
Starter volts	12
Oil capacity	6.8 qts 6.4 L
Coolant capacity	6.9 qts 6.5 L

Transmission

Transmission options
8-speed shuttle
hydrostatic

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Oil capacity	37 qts 35.0 L

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

TYM T494 Tires
Standard tires (ag)	Front: 9.5-16. Rear: 13.6-26
	Front: 9.5-16. Rear: 14.9-24
Lawn/turf front	27x10.50-15
Lawn/turf rear	44x18.00-20
Industrial front	12-16.5
Industrial rear	17.5-24
	16.9-24

Dimensions
Wheelbase	76.2 inches 193 cm
Length	133.8 inches 339 cm
Width	63.8 inches 162 cm
Height (ROPS)	102.1 inches 259 cm
Height (cab)	99.6 inches 252 cm
ROPS Weight	4012 lbs 1819 kg
Cab Weight	4277 lbs 1940 kg
Ground clearance	13.8 inches 35 cm

Photos

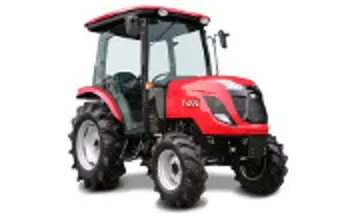

TYM T494 compact utility tractor.

TYM T494 compact utility tractor on trailer.
