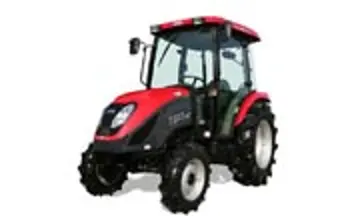

TYM T503
The TYM T503 is a tractor produced by Tym. It is equipped with a 135.2 ci 2.2 L engine. The listed engine power is Diesel (gross): 50.7 hp / 37.8 kW. Transmission: infinite forward and reverse. Operating weight: 1102 lbs 499 kg.
Engine Power
Diesel (gross): 50.7 hp / 37.8 kW
Fuel & Capacities
17 gal
64.3 L
Transmission
infinite forward and reverse
Operating Weight
1102 lbs
499 kg
Overview
![]() | 2006 - 2015
500 SeriesCompact Utility tractor
500 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T503 Engine | |
|---|---|
Caterpillar 2.2L 4-cyl diesel | |
Engine details ... |
TYM T503 Power | |
|---|---|
Engine (gross) | 50.7 hp
37.8 kW |
PTO (claimed) | 39.8 hp
29.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post ROPS. Cab optional. |
Capacity | |
|---|---|
Fuel | 17 gal
64.3 L |
Hydraulic system | 9.2 gal
34.8 L |
Front axle | 10.5 qts
9.9 L |
Hydraulics | |
|---|---|
Type | dual gear pump |
Capacity | 9.2 gal
34.8 L |
Valves | 2 |
Pump flow | 9.5 gpm
36.0 lpm |
Total flow | 14.5 gpm
54.9 lpm |
Steering flow | 5.0 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Control | position and draft control |
Rear lift (at ends) | 2875 lbs
1304 kg |
Rear lift (at 24"/610mm) | 2105 lbs
954 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Weight | 4140 to 4559 pounds |
Front tire | 8.0-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 65 |
Charging volts | 12 |
Battery volts | 12 |
Engine
Engine Detail — 135.2 ci / 2.2 L Diesel
Manufacturer | Caterpillar C2.2 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Depending on market, this engine was also branded as a Perkins 404D-22T | |
Displacement | 135.2 ci
2.2 L |
Power (gross) | 50.7 hp
37.8 kW |
Fuel system | indirect injection |
Air cleaner | dual dry element |
Rated RPM | 2800 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 7.1 qts
6.7 L |
Coolant capacity | 9 qts
8.5 L |
Transmission
Transmission options | |
|---|---|
16-speed sync shuttle | |
hydrostatic |

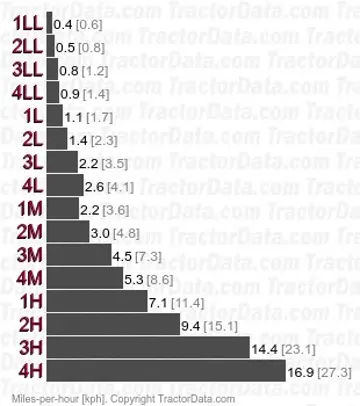

Transmission — 16 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 16 forward and reverse |
Clutch | single dry disc |
Oil capacity | 36.8 qts
34.8 L |
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range. | |
![]() | |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Hydrostatic transmission first offered in 2011. | |
Dimensions
TYM T503 Tires | |
|---|---|
Ag front | 8.0-16 |
Ag rear | 13.6-24 |
Industrial front | 12-16.5 |
Industrial rear | 17.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Length | 141.3 inches
358 cm |
Width | 62.6 inches
159 cm |
Height (ROPS) | 101.9 inches
258 cm |
ROPS Weight | 4140 lbs
1877 kg |
Cab Weight | 4559 lbs
2067 kg |
Ground clearance | 13.8 inches
35 cm |
Attachments
Attachment overview | |
|---|---|
TYM LT500 loader | |
TYM TX5000 loader | |
Backhoe |
TYM BT400 Backhoe | |
|---|---|
Backhoe type | TYM BT400 Backhoe |
Weight | 1102 lbs
499 kg |
2-Foot flat digging depth | 94.4 inches
239 cm |
Reach from pivot | 136.1 inches
345 cm |
Loading height | 80.3 inches
203 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 4151 lbs
1882 kg |
Dipperstick force | 2660 lbs
1206 kg |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T503 based on its 50.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T503.
Estimated Continuous Field Runtime: 6.4 hrs
Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (17 gal / 64.4 L).
Estimated 75% Load Fuel Burn~2.6 gal/hr (10 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T503 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T503.
Converted Equivalents:
Horsepower (HP)50.7 hp
Kilowatts (kW)37.8 kW
Metric Horsepower (PS / CV)51.4 PS
