TYM T554

The TYM T554 is a tractor produced by Tym. It is equipped with a 127.6 ci 2.1 L engine. The listed engine power is Engine Detail — 127.6 ci / 2.1 L (gross): 55.1 hp / 41.1 kW. Transmission: 16 forward and reverse. Operating weight: 4188 lbs 1899 kg.

Overview

	2014 - Compact Utility tractor
2014 -
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T554 Engine
Yanmar 2.1L 4-cyl
Engine details ...

TYM T554 Transmission
16-speed syncronized shuttle
Transmission details ...

TYM T554 Power
Engine (gross)	55.1 hp 41.1 kW
PTO (claimed)	45.6 hp 34.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Two-post foldable ROPS. Cab optional.

Capacity
Fuel	17 gal 64.3 L
Hydraulic system	9.2 gal 34.8 L
Front axle	10.5 qts 9.9 L

Hydraulics
Type	open center dual gear pump
Capacity	9.2 gal 34.8 L
Valves	2
Pump flow	9.5 gpm 36.0 lpm
Total flow	14.5 gpm 54.9 lpm
Steering flow	5.0 gpm 18.9 lpm

Tractor hitch
Rear Type	I
	II *Europe
Control	position and draft control
Rear lift (at ends)	3314 lbs 1503 kg
Rear lift (at 24"/610mm)	2945 lbs 1335 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	76.2 inches 193 cm
Weight	4188 lbs 1899 kg
Front tire	9.5-16
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Charging volts	12
Battery volts	12

Engine

Engine Detail — 127.6 ci / 2.1 L

Manufacturer	Yanmar 4TNV86T-CR
Configuration	turbocharged, 4-cylinder, liquid-cooled
Displacement	127.6 ci 2.1 L
Bore/Stroke	3.4x3.5 inches 86 x 89 mm
Emissions	Tier IV
Power (gross)	55.1 hp 41.1 kW
Fuel system	common rail direct injection
Air cleaner	dual dry element
Rated RPM	2800
Starter	electric
Starter volts	12
Oil capacity	7.1 qts 6.7 L
Coolant capacity	9 qts 8.5 L

Transmission

Transmission — 16 forward and reverse syncronized shuttle

Type	syncronized shuttle
Gears	16 forward and reverse
Clutch	dry disc
Oil capacity	37 qts 35.0 L

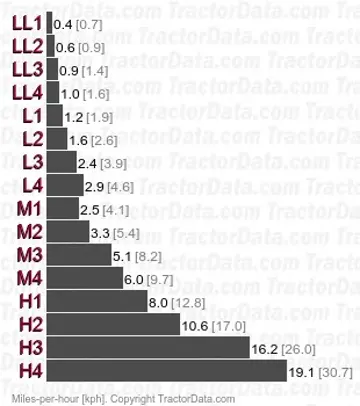

Four gears (1-4) in four ranges (LL, low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch.

Dimensions

TYM T554 Tires
Ag front	9.5-16
Ag rear	13.6-26
Industrial front	12-16.5
Industrial rear	17.5L-24

Dimensions
Wheelbase	76.2 inches 193 cm
Length	141.3 inches 358 cm
Width	63.8 inches 162 cm
Height (cab)	108.9 inches 276 cm
Weight	4188 lbs 1899 kg
Ground clearance	13.8 inches 35 cm

Photos

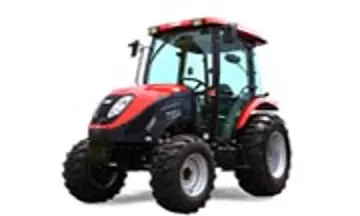

TYM T554 tractor photo
