TYM T653

The TYM T653 is a tractor produced by Tym. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: 24 forward and reverse. Operating weight: 5478 lbs 2484 kg.

Engine Power
Diesel (listed): 65 hp / 48.5 kW
Fuel & Capacities
19 gal 71.9 L
Transmission
24 forward and reverse
Operating Weight
5478 lbs 2484 kg

Overview

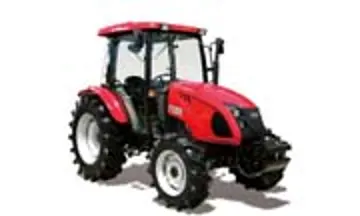

TYM T653 tractor photo
Utility tractor
Utility tractor
Production
Manufacturer
TYM
Utility tractor
Built in South Korea
TYM T653 Engine
3-cyl diesel
Fuel tank
19 gal 71.9 L
Engine details ...
TYM T653 Transmission
24-speed
Transmission details ...
TYM T653 Power
Engine
65 hp 48.5 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Cab standard.
Power Take-off (PTO)
Rear PTO Type
540/540E
Dimensions & Tires
Wheelbase
83.2 inches 211 cm
Weight
5478 lbs 2484 kg
Front tire
11.2-20
Rear tire
14.9-30
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — Diesel

Configuration
turbocharged diesel, 3-cylinder, liquid-cooled
Power
65 hp 48.5 kW
Rated RPM
2200
Starter
electric
Starter volts
12

Transmission

Transmission — 24 forward and reverse

Gears
24 forward and reverse

Dimensions

TYM T653 Tires
Standard tires (ag)
Front: 11.2-20. Rear: 14.9-30
Dimensions
Wheelbase
83.2 inches 211 cm
Length
146.7 inches 372 cm
Width
72.4 inches 183 cm
Height (cab)
100.2 inches 254 cm
Weight
5478 lbs 2484 kg
Ground clearance
16.3 inches 41 cm

Photos

TYM T653 tractor photo

TYM T653 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T653 based on its 65 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T653.

Estimated Continuous Field Runtime: 5.6 hrs

Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (19 gal / 71.9 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T653 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T653.

Converted Equivalents:

Horsepower (HP)65 hp
Kilowatts (kW)48.5 kW
Metric Horsepower (PS / CV)65.9 PS

Direct Competitor Comparison

Compare TYM T653 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM T653

Engine Power:Diesel (listed): 65 hp / 48.5 kW
★ Baseline Reference
DeereMarket Competitor

Deere 818

Engine Power:58.8
Production Years:1966 - 1976
Massey FergusonMarket Competitor

Massey Ferguson 1758

Engine Power:59
Production Years:2013 - 2018
SteyrMarket Competitor

Steyr 8070

Engine Power:58.5
Production Years:1979 - 1992
McCormick IntlMarket Competitor

McCormick Intl C60 Max

Engine Power:58.5
Production Years:2004 - 2007
