TYM T654

The TYM T654 is a tractor produced by Tym. It is equipped with a 177 ci 2.9 L engine. The listed engine power is Diesel (gross): 67 hp / 50.0 kW. Transmission: 24 forward and reverse. Operating weight: 5555 lbs 2519 kg.

Overview

	2019 - Utility tractor
2019 -
Utility tractor

Production
Manufacturer	TYM
Utility tractor

TYM T654 Engine
Deutz 2.9L 4-cyl diesel
Fuel tank	18.5 gal 70.0 L
Engine details ...

TYM T654 Power
Engine (gross)	67 hp 50.0 kW
PTO (claimed)	61.9 hp 46.2 kW

Mechanical
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Pump flow	10.3 gpm 39.0 lpm
Total flow	16.1 gpm 60.9 lpm
Steering flow	5.8 gpm 22.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at ends)	4270 lbs 1936 kg
Rear lift (at 24"/610mm)	3153 lbs 1430 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	84.6 inches 214 cm
Weight	5555 lbs 2519 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	95
Battery volts	12

References
T654 published in 2015, by TYM

Engine

Engine Detail — 177 ci / 2.9 L Diesel

Manufacturer	Deutz TCD2.9L4
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	177 ci 2.9 L
Bore/Stroke	3.622x4.331 inches 92 x 110 mm
Power (gross)	67 hp 50.0 kW
Fuel system	common rail direct injection
Air cleaner	dry
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	8.5 qts 8.0 L
Coolant capacity	10.6 qts 10.0 L

Transmission

Transmission options
24-speed sync shuttle
24-speed power shuttle

Transmission — 24 forward and reverse sync shuttle

Type	sync shuttle
Gears	24 forward and reverse
Oil capacity	44.4 qts 42.0 L

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse

Dimensions

TYM T654 Tires

Dimensions
Wheelbase	84.6 inches 214 cm
Length	155.6 inches 395 cm
Width	72.4 inches 183 cm
Height (cab)	100.2 inches 254 cm
Weight	5555 lbs 2519 kg
Ground clearance	17.1 inches 43 cm

Photos

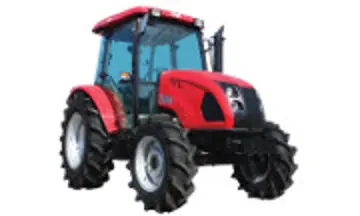

TYM T654 tractor photo
