TYM TL493

The TYM TL493 is a tractor produced by Tym. It is equipped with a 121.7 ci 2.0 L engine. The listed engine power is Diesel (listed): 49 hp / 36.5 kW. Transmission: 16 forward and reverse.

Engine Power
Diesel (listed): 49 hp / 36.5 kW
Fuel & Capacities
11.1 gal 42.0 L
Transmission
16 forward and reverse

Overview

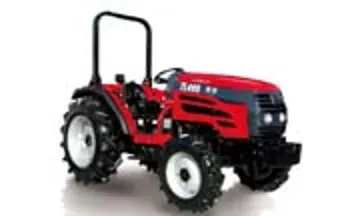

TYM TL493 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
TYM TL493 Engine
Yanmar 2.0L 4-cyl diesel
Fuel tank
11.1 gal 42.0 L
Engine details ...
TYM TL493 Transmission
16-speed
Transmission details ...
TYM TL493 Power
Engine
49 hp 36.5 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post ROPS.
Power Take-off (PTO)
Rear PTO Type
540/750/1000
Dimensions & Tires
Wheelbase
70.9 inches 180 cm
Front tire
8.0-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 121.7 ci / 2.0 L Diesel

Manufacturer
Yanmar
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
121.7 ci 2.0 L
Power
49 hp 36.5 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

TYM TL493 Tires
Standard tires (ag)
Front: 8.0-16. Rear: 12.4-24
Optional tires (ag)
Front: 10-16. Rear: 13.6-26
Dimensions
Wheelbase
70.9 inches 180 cm
Length
122.8 inches 311 cm
Width
59.4 inches 150 cm
Height (ROPS)
97.8 inches 248 cm
Ground clearance
13.4 inches 34 cm

Photos

TYM TL493 tractor photo

TYM TL493 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym TL493 based on its 49 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym TL493.

Estimated Continuous Field Runtime: 4.4 hrs

Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).

Estimated 75% Load Fuel Burn~2.5 gal/hr (9.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym TL493 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym TL493.

Converted Equivalents:

Horsepower (HP)49 hp
Kilowatts (kW)36.5 kW
Metric Horsepower (PS / CV)49.7 PS

Direct Competitor Comparison

Compare TYM TL493 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM TL493

Engine Power:Diesel (listed): 49 hp / 36.5 kW
★ Baseline Reference
DeereMarket Competitor

Deere 515

Engine Power:44.1
Production Years:1966 - 1976
Massey FergusonMarket Competitor

Massey Ferguson 1445

Engine Power:44.2
Production Years:2003 - 2005
International HarvesterMarket Competitor

International Harvester TD-340

Engine Power:44.2
Production Years:1959 - 1965
Deutz-FahrMarket Competitor

Deutz-Fahr 4046E Keyline

Engine Power:44.3
Production Years:2018 - 2026
