UTB/Universal 530

The UTB/Universal 530 is a tractor produced by Utb Universal. It is equipped with a 164.4 ci 2.7 L engine. The listed engine power is Diesel (listed): 53 hp / 39.5 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 8 forward and reverse. Operating weight: 4000 to 4800 pounds.

Overview

	1982 - 1985

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania
Original price was $19,000 in 1985

Variants
530DT	4WD

UTB/Universal 530 Engine
UTB 2.7L 3-cyl diesel
Fuel tank	14.3 gal 54.1 L
Engine details ...

UTB/Universal 530 Power
Engine	53 hp 39.5 kW
PTO (claimed)	50 hp 37.3 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Dry band brakes
ROPS. Cab optional.

Hydraulics
Type	open center
Valves	1
Pump flow	9.1 gpm 34.4 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	77.1 inches 195 cm
Weight	4000 to 4800 pounds
Front tire	7.50-16
Rear tire	12.4-36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Universal 530
Loaders published in 1987, by Universal

Engine

Engine Detail — 164.4 ci / 2.7 L Diesel

Manufacturer	UTB
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	164.4 ci 2.7 L
Bore/Stroke	4.016x4.331 inches 102 x 110 mm
Power	53 hp 39.5 kW
Fuel system	direct injection
Compression	17:1
Rated RPM	2400
Torque	131 lb-ft 177.6 Nm
Torque RPM	1400
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
12-speed constant mesh
8-speed shuttle

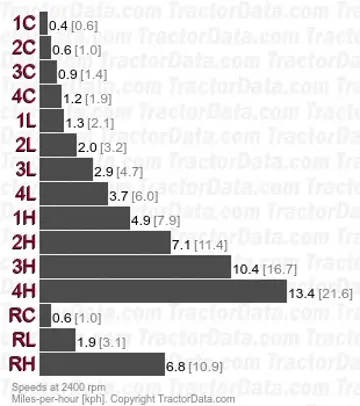

Transmission — 12 forward and 3 reverse constant mesh

Type	constant mesh
Gears	12 forward and 3 reverse
Clutch	279.4mm dry disc
Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized.
With 14.9x28 rear tires.

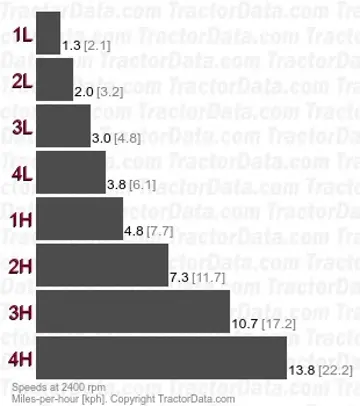

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	279.4mm dry disc
With 14.9x28 rear tires. Reverse speeds are 15% faster than forward.

Dimensions

UTB/Universal 530 Tires
Ag front	7.50-16
	9.5-24 (4WD)
Ag rear	12.4-36

Dimensions
Wheelbase	77.1 inches 195 cm
Length	125.2 inches 318 cm
Height	98.43 inches 250 cm
2WD Weight	4000 lbs 1814 kg
4WD Weight	4800 lbs 2177 kg

Photos

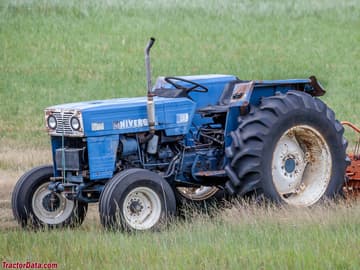

UTB/Universal 530

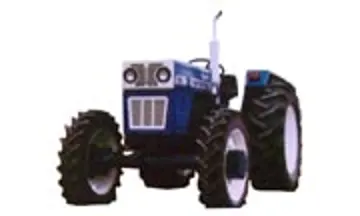

UTB/Universal 530DT.
