UTB/Universal 532

The UTB/Universal 532 is a tractor produced by Utb Universal. It is equipped with a 164.5 ci 2.7 L engine. The listed engine power is Diesel (listed): 53 hp / 39.5 kW. Transmission: 12 forward and 3 reverse. Operating weight: 5842 to 6393 pounds.

Overview

	1985 - 1988

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania

Variants
532DT	4WD

UTB/Universal 532 Engine
UTB 2.7L 3-cyl diesel
Engine details ...

UTB/Universal 532 Power
Engine	53 hp 39.5 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic band brakes
Cab standard.

Hydraulics
Pressure	2176 psi 150.0 bar
Pump flow	8.2 gpm 31.0 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	3822 lbs 1733 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	78.8 inches 200 cm
Weight	5842 to 6393 pounds
Front tire	6.00-16
2WD Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Universal 532 published in 1985

Engine

Engine Detail — 164.5 ci / 2.7 L Diesel

Manufacturer	UTB D-115
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	164.5 ci 2.7 L
Bore/Stroke	4.016x4.331 inches 102 x 110 mm
Power	53 hp 39.5 kW
Air cleaner	dry
Compression	17:1
Rated RPM	2400
Starter volts	12

Transmission

Transmission options
8-speed partially synchronized
12-speed creeper

Transmission — 8 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 2 reverse
Transmission
Type	creeper
Gears	12 forward and 3 reverse

Dimensions

UTB/Universal 532 Tires
2WD Standard tires (ag)	Front: 6.00-16. Rear: 14.9-28
4WD Standard tires (ag)	Front: 7.5-20. Rear: 14.9-28

Dimensions
Wheelbase	78.8 inches 200 cm
Length	127.6 inches 324 cm
Width	79.9 inches 202 cm
Height (cab)	102.4 inches 260 cm
Height (exhaust)	98.4 inches 249 cm
2WD Weight	5842 lbs 2649 kg
4WD Weight	6393 lbs 2899 kg
Ground clearance	10.4 inches 26 cm
2WD Front tread	55.1 to 78.7 inches 139 to 199 cm
4WD Front tread	55.1 inches 139 cm
Rear tread	63 to 74.8 inches 160 to 189 cm

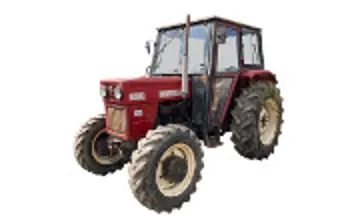

Photos

UTB/Universal 532
