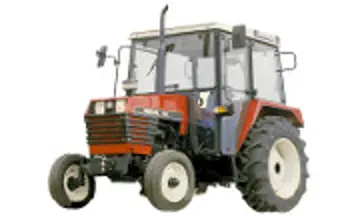

UTB/Universal 533

The UTB/Universal 533 is a tractor produced by Utb Universal. It is equipped with a 196.9 ci 3.2 L engine. The listed engine power is Diesel (listed): 53 hp / 39.5 kW. Transmission: 12 forward and 3 reverse. Operating weight: 5765 to 6393 pounds.

Overview

	1988 - 2004 3 SeriesUtility tractor 3 Series Utility tractor

Production
Manufacturer	UTB/Universal
Utility tractor
Built in Brasov, Romania
Original price was $17,000 in 2004

Variants
533DT	4WD

UTB/Universal 533 Power
Engine	53 hp 39.5 kW
PTO (claimed)	47 hp 35.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes

Hydraulics
Type	open center
Pump flow	9 gpm 34.1 lpm

Tractor hitch
Rear Type	II/I

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2160
	1000@2400

Dimensions & Tires
Wheelbase	83.4 inches 211 cm
Weight	5765 to 6393 pounds
Front tire	6.00-16
2WD Rear tire	14.9R28
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12
Battery AH	150

References
3 Series Tractors published by Universal*
3 Series Tractors published by Universal
*Publication contains known errors.

Engine

Engine options
UTB 2.5L 3-cyl diesel
UTB 3.2L 4-cyl diesel

Engine Detail — 149.5 ci / 2.5 L Diesel

Manufacturer	UTB D115.050
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	149.5 ci 2.5 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power	53 hp 39.5 kW
Air cleaner	oil bath
Compression	17:1
Rated RPM	2400
Torque	123.2 lb-ft 167.1 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	7.2 qts 6.8 L
Coolant capacity	13.7 qts 13.0 L

Engine Detail — 196.9 ci / 3.2 L Diesel

Manufacturer	UTB
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	196.9 ci 3.2 L
Bore/Stroke	4.016x4.331 inches 102 x 110 mm
Rated RPM	2400

Transmission

Transmission options
8-speed constant mesh
12-speed creeper

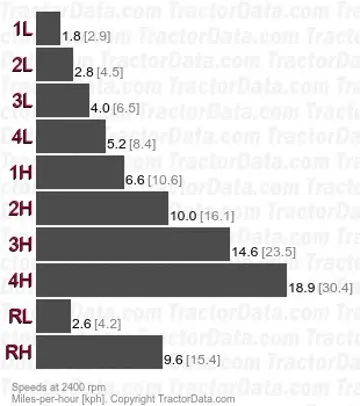

Transmission — 8 forward and 2 reverse constant mesh

Type	constant mesh
Gears	8 forward and 2 reverse
Clutch	dry disc
Oil capacity	24.3 qts 23.0 L
Four gears (1-4) plus reverse (R) in two ranges (low and high).
With 16.9-30 rear tires.

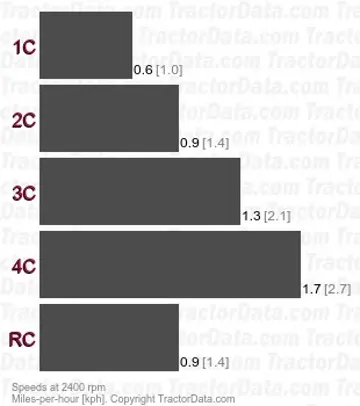

Transmission — 12 forward and 3 reverse creeper

Type	creeper
Gears	12 forward and 3 reverse
Clutch	dry disc
Optional creeper adds a third range to the basic transmission.
With 16.9-30 rear tires.

Dimensions

UTB/Universal 533 Tires
2WD Standard tires (ag)	Front: 6.00-16. Rear: 14.9R28
4WD Standard tires (ag)	Front: 9.5/8-24. Rear: 12.4R-36

Dimensions
Wheelbase	83.4 inches 211 cm
Length	143.3 inches 363 cm
Height	97.64 inches 248 cm
2WD Weight	5765 lbs 2615 kg
4WD Weight	6393 lbs 2899 kg

Photos

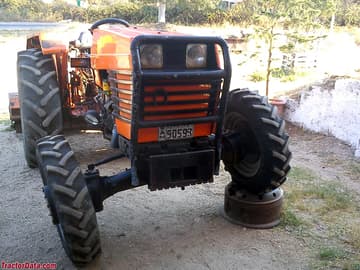

UTB/Universal 533

UTB/Universal 533
