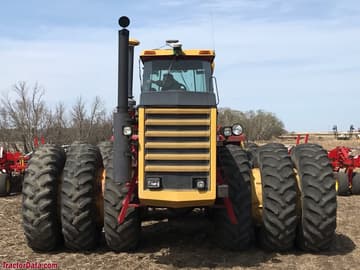

Versatile 1150
The Versatile 1150 is a tractor produced by Versatile. It is equipped with a 1150 ci 18.8 L engine. The listed engine power is Diesel (listed): 470 hp / 350.5 kW. Transmission: 12 forward and 2 reverse.
Engine Power
Diesel (listed): 470 hp / 350.5 kW
Fuel & Capacities
400 gal
1514.0 L
Transmission
12 forward and 2 reverse
Overview
![]() | 1981 - 1985
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Original price | $160,544 (1983 ) |
$187,000 (1985 ) | |
Versatile 1150 Engine | |
|---|---|
Cummins 18.8L 6-cyl diesel | |
Fuel tank | 400 gal
1514.0 L |
Engine details ... | |
Versatile 1150 Power | |
|---|---|
Engine | 470 hp
350.5 kW |
Drawbar (claimed) | 400 hp
298.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electric front and rear |
Disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Valves | 5 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 140 inches
355 cm |
Front tire | 20.8x38 |
Rear tire | 20.8x38 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 90 |
References | |
|---|---|
![]() | |
Agricultural Operations Sales Manual published in 1983, by Versatile |
Engine
Engine Detail — 1150 ci / 18.8 L Diesel
Manufacturer | Cummins KTA 1150C |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 1150 ci
18.8 L |
Bore/Stroke | 6.25x6.25 inches
159 x 159 mm |
Power | 470 hp
350.5 kW |
Rated RPM | 2100 |
Coolant capacity | 85 qts
80.4 L |
Transmission
Transmission options | |
|---|---|
8-speed gear | |
12-speed power shift |
Transmission — 8 forward and 4 reverse gear
Type | gear |
Gears | 8 forward and 4 reverse |
Clutch | 393.7mm cerametallic disc |
Transmission — 12 forward and 2 reverse power shift
Type | power shift |
Gears | 12 forward and 2 reverse |
Dimensions
Versatile 1150 Tires | |
|---|---|
Ag front | 20.8x38 |
20.8x42 | |
24.5x32 | |
30.5x32 | |
Ag rear | 20.8x38 |
20.8x42 | |
24.5x32 | |
30.5x32 | |
Dimensions | |
|---|---|
Wheelbase | 140 inches
355 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Versatile 1150 based on its 470 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 1150.
Estimated Continuous Field Runtime: 16.4 hrs
Approximately 16.4 hours of continuous field operation at ~75% rated power on a full tank (400 gal / 1514.2 L).
Estimated 75% Load Fuel Burn~24.4 gal/hr (92.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Versatile 1150 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 1150.
Converted Equivalents:
Horsepower (HP)470 hp
Kilowatts (kW)350.5 kW
Metric Horsepower (PS / CV)476.5 PS
Direct Competitor Comparison
Compare Versatile 1150 against same-era industry alternatives in the same horsepower class.
Current Model
Versatile
Versatile 1150
Engine Power:Diesel (listed): 470 hp / 350.5 kW
★ Baseline Reference
