Versatile 195 Nemesis

The Versatile 195 Nemesis is a tractor produced by Versatile. It is equipped with a 408.2 ci 6.7 L engine. The listed engine power is Diesel (listed): 195 hp / 145.4 kW. Transmission: ZF TPT20. Operating weight: 19500 lbs 8845 kg.

Overview

	2020 - Nemesis SeriesRow-Crop tractor
2020 -
Nemesis Series
Row-Crop tractor

Production
Manufacturer	Versatile (a part of Rostselmash)
Row-Crop tractor
Built in Winnigpeg, Manitoba, Canada
Original price was $170,620 in 2020

Versatile 195 Nemesis Engine
Cummins 6.7L 6-cyl diesel
Fuel tank	99 gal 374.7 L
Exhaust fluid (DEF)	9 gal 34.1 L
Engine details ...

Versatile 195 Nemesis Transmission
30-speed partial power shift
Transmission details ...

Versatile 195 Nemesis Power
Engine	195 hp 145.4 kW
PTO (claimed)	167 hp 124.5 kW

Mechanical
Four-wheel drive
Power steering
Trailer brakes	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	closed center load-sensing
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	31 gpm 117.3 lpm
	42 gpm ((Optional) 159.0 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	15542 lbs 7049 kg
Front Hitch	IIIN OptOptional
Front lift	8818 lbs 3999 kg
Drawbar	Cat. 3

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)OptOptional

Dimensions & Tires
Wheelbase	114 inches 289 cm
Weight	19500 lbs 8845 kg
Front tire	600/65R28
Rear tire	710/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery CCA	950
Battery volts	12

References
Nemesis published in 2019, by Versatile

Engine

Engine Detail — 408.2 ci / 6.7 L Diesel

Manufacturer	Cummins B6.7
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	408.2 ci 6.7 L
Bore/Stroke	4.21x4.88 inches 107 x 124 mm
Emissions	Stage V
Power	195 hp 145.4 kW
Rated RPM	2100
Starter	electric
Starter volts	12

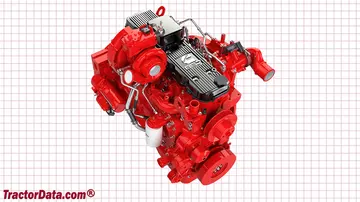

Versatile 195 Nemesis Engine

Transmission

Transmission — ZF TPT20

Transmission	ZF TPT20
Type	partial power shift
Gears	30 forward and 15 reverse
Six-speed power shift with power shuttle.

Dimensions

Versatile 195 Nemesis Tires
Standard tires (ag)	Front: 600/65R28. Rear: 710/70R38
Optional tires (ag)	Front: 380/85R34. Rear: 380/90R50
	Front: 380/85R34. Rear: 480/80R46
	Front: 480/70R30. Rear: 520/85R42
	Front: 480/70R30. Rear: 620/70R42

Dimensions
Wheelbase	114 inches 289 cm
Height (cab)	128 inches 325 cm
Weight	19500 lbs 8845 kg
Bar rear axle	4.1 by 98 inches 104 by 2489 mm
Bar rear axle	4.1 by 118 inches 104 by 2997 mm
Front tread	61 to 88 inches 154 to 223 cm
Rear tread	61 to 98 inches 154 to 248 cm

Photos

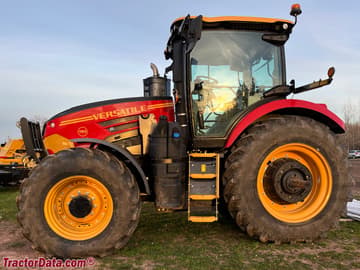

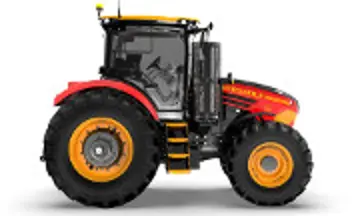

Versatile 195 Nemesis
