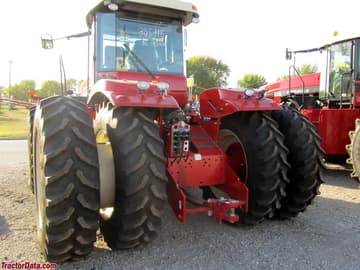

Versatile 340
The Versatile 340 is a tractor produced by Versatile. It is equipped with a 661 ci 10.8 L engine. The listed engine power is Diesel (listed): 340 hp / 253.5 kW. Transmission: Quadshift. Operating weight: 31500 lbs 14288 kg.
Engine Power
Diesel (listed): 340 hp / 253.5 kW
Fuel & Capacities
250 gal
946.2 L
Transmission
Quadshift
Operating Weight
31500 lbs
14288 kg
Overview
![]() | 2008 - 2011
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Versatile (a part of Rostselmash) |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Versatile 340 Engine | |
|---|---|
Cummins 10.8L 6-cyl diesel | |
Engine details ... |
Versatile 340 Power | |
|---|---|
Engine | 340 hp
253.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Differential lock | optional |
Steering | hydrostatic power |
Dry caliper brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 250 gal
946.2 L |
Hydraulic system | 20 gal
75.7 L |
Hydraulics | |
|---|---|
Type | closed center load sensing (CCLS) |
Capacity | 20 gal
75.7 L |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 6 |
Pump flow | 50 gpm
189.2 lpm |
Dimensions & Tires | |
|---|---|
Wheelbase | 142 inches
360 cm |
Weight | 31500 lbs
14288 kg |
Front tire | 710/70R38 |
Rear tire | 710/70R38 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 160 |
Charging volts | 12 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
Engine
Engine Detail — 661 ci / 10.8 L Diesel
Manufacturer | Cummins QSM11 |
Configuration | turbocharged and air-to-air aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 661 ci
10.8 L |
Bore/Stroke | 4.92x5.79 inches
125 x 147 mm |
Power | 340 hp
253.5 kW |
Maximum Power | 375 hp
279.6 kW |
Torque | 1150 lb-ft
1559.4 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 38.8 qts
36.7 L |
Coolant capacity | 63.4 qts
60.0 L |
Transmission
Transmission options | |
|---|---|
12-speed partiallly synchronized | |
12-speed full power shift |
Transmission — Quadshift
Transmission | Quadshift |
Type | partiallly synchronized |
Gears | 12 forward and 4 reverse |
Transmission — 12 forward and 2 reverse full power shift
Type | full power shift |
Gears | 12 forward and 2 reverse |
Dimensions
Versatile 340 Tires | |
|---|---|
Ag front | 710/70R38 |
Ag rear | 710/70R38 |
Dimensions | |
|---|---|
Wheelbase | 142 inches
360 cm |
Length | 265 inches
673 cm |
Height (cab) | 143 inches
363 cm |
Height (exhaust) | 146 inches
370 cm |
Ground clearance | 16.9 inches
42 cm |
Versatile 340 Weight | |
|---|---|
31500 lbs
14288 kg | |
Max capacity | 34000 lbs
15422 kg |
Max Drawbar | 6000 lbs
2721 kg |
9000 lbs (optional)
4082 kg | |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Versatile 340 based on its 340 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 340.
Estimated Continuous Field Runtime: 14.1 hrs
Approximately 14.1 hours of continuous field operation at ~75% rated power on a full tank (250 gal / 946.4 L).
Estimated 75% Load Fuel Burn~17.7 gal/hr (66.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Versatile 340 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 340.
Converted Equivalents:
Horsepower (HP)340 hp
Kilowatts (kW)253.5 kW
Metric Horsepower (PS / CV)344.7 PS
Direct Competitor Comparison
Compare Versatile 340 against same-era industry alternatives in the same horsepower class.
Current Model
Versatile
Versatile 340
Engine Power:Diesel (listed): 340 hp / 253.5 kW
★ Baseline Reference
