Zetor Forterra 11441
The Zetor Forterra 11441 is a tractor produced by Zetor. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 110 hp 82.0 kW. Transmission: 24 forward and 18 reverse. Operating weight: 10179 lbs 4617 kg.
Engine Power
110 hp
82.0 kW
Fuel & Capacities
47.6 gal
180.2 L
Transmission
24 forward and 18 reverse
Operating Weight
10179 lbs
4617 kg
Zetor Forterra 11441 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2009
Model year 2002-20072007-2009
Forterra Series |
|---|---|
2002 - 2009 | |
Model year 2002-20072007-2009 | |
Forterra Series | |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czechoslovakia | |
Zetor 11441 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Fuel tank | 47.6 gal
180.2 L |
Engine details ...  | |
Zetor 11441 Transmission | |
|---|---|
24-speed synchronized | |
Transmission details ...  |
Zetor 11441 Power | |
|---|---|
Engine | 110 hp
82.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
pneumatic OptOptional | |
Cab standard with available air-conditioning. | |
Hydraulics | |
|---|---|
Pump flow | 15.85 gpm
60.0 lpm |
18.5 gpmOptOptional
70.0 lpm | |
Tractor hitch | |
|---|---|
Control | position control and lower-link draft sensing |
Rear lift | 13150 lbs
5964 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/1000 |
750/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 94.1 inches
239 cm |
Weight | 10179 lbs
4617 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | Zetor Z 1403 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.13x4.72 inches
105 x 120 mm |
Power | 110 hp
82.0 kW |
Rated RPM | 2200 |
Torque | 354 lb-ft
480.0 Nm |
Torque RPM | 1550 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 24 forward and 18 reverse synchronized
Type | synchronized |
Gears | 24 forward and 18 reverse |
Clutch | hydraulic dry disc |
Dimensions
Zetor 11441 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 94.1 inches
239 cm |
Length | 195.9 inches
497 cm |
Width | 86.3 inches
219 cm |
Height | 111.3 inches
282 cm |
Weight | 10179 lbs
4617 kg |
Ground clearance | 18.3 inches
46 cm |
Photos

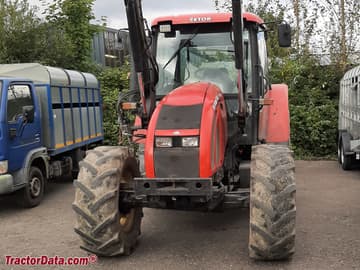

1997 Zetor 11441 with Traclift front-end loader.
