Allis Chalmers T-816

The Allis Chalmers T-816 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Vari-Shift. Operating weight: 485 lbs 219 kg.

Engine Power

Gasoline (listed): 16 hp / 11.9 kW

Fuel & Capacities

2.2 gal 8.3 L

Transmission

Vari-Shift

Operating Weight

485 lbs 219 kg

Overview

	1982 - 1985 T-800 SeriesGarden tractor T-800 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $3,529 in 1984

Allis Chalmers T-816 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Allis Chalmers T-816 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	48.3 inches 122 cm
Weight	485 lbs 219 kg
Front tire	15x6.00-6
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

900 & T-800 Series Gardenpower published in 1982, by Allis-Chalmers
1983 Lawn and Garden Line published by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 402707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	655 cc 40 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Vari-Shift

Transmission	Vari-Shift
Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	mechanical idler pulley
Oil capacity	1.2 qts 1.1 L
Three-speed gear transmission with variable speed lever.

T-816 Transmission Controls

1	Throttle
2	Gear shift
3	Variator
4	Clutch/brake

Dimensions

Allis Chalmers T-816 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48.3 inches 122 cm
Length	67 inches 170 cm
Width	38 inches 96 cm
Height (steering wheel)	41.4 inches 105 cm
Height (hood)	35.9 inches 91 cm
Weight	485 lbs 219 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

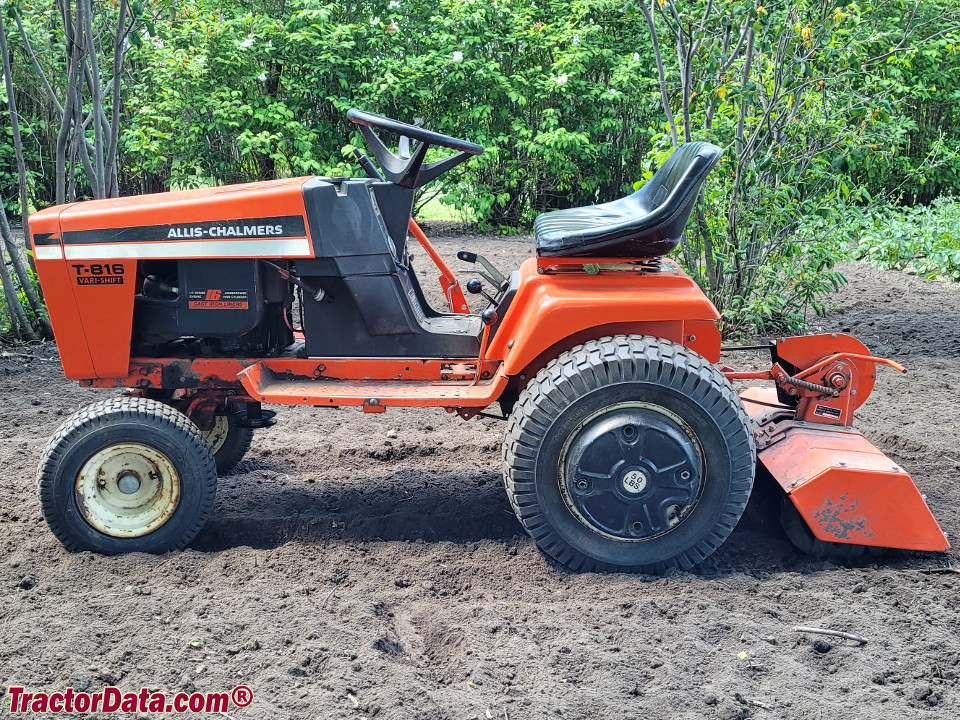

Allis-Chalmers T-816 with tiller.

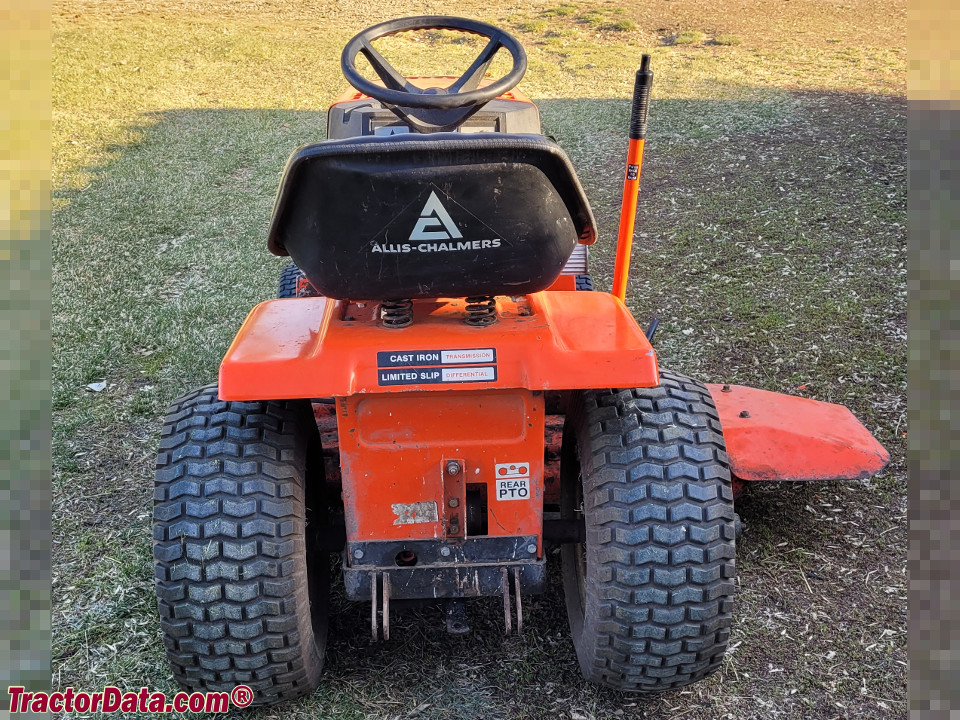

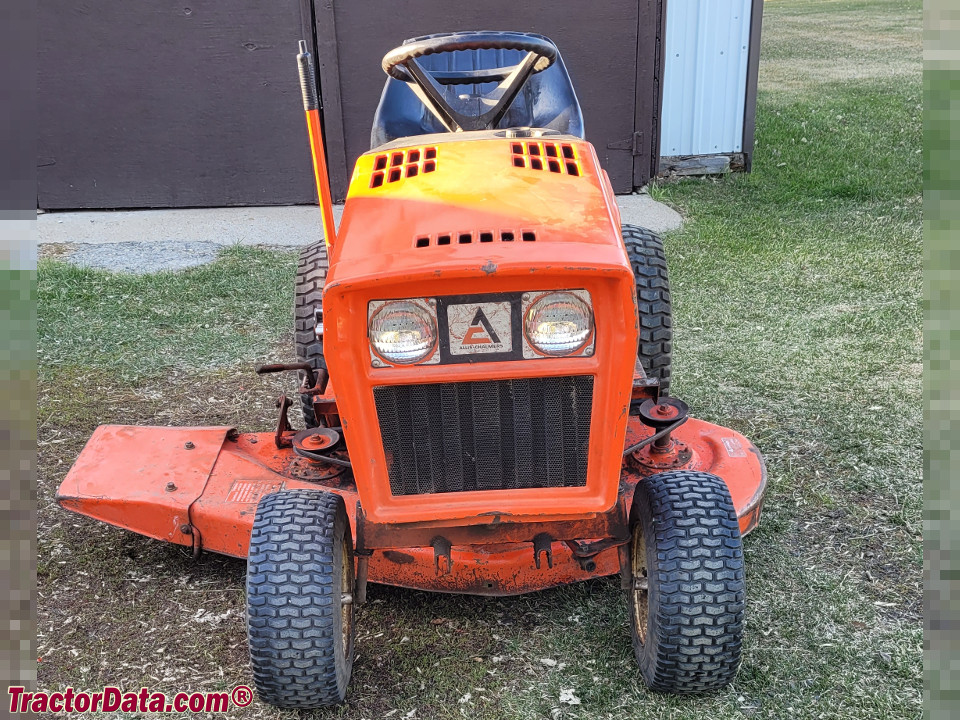

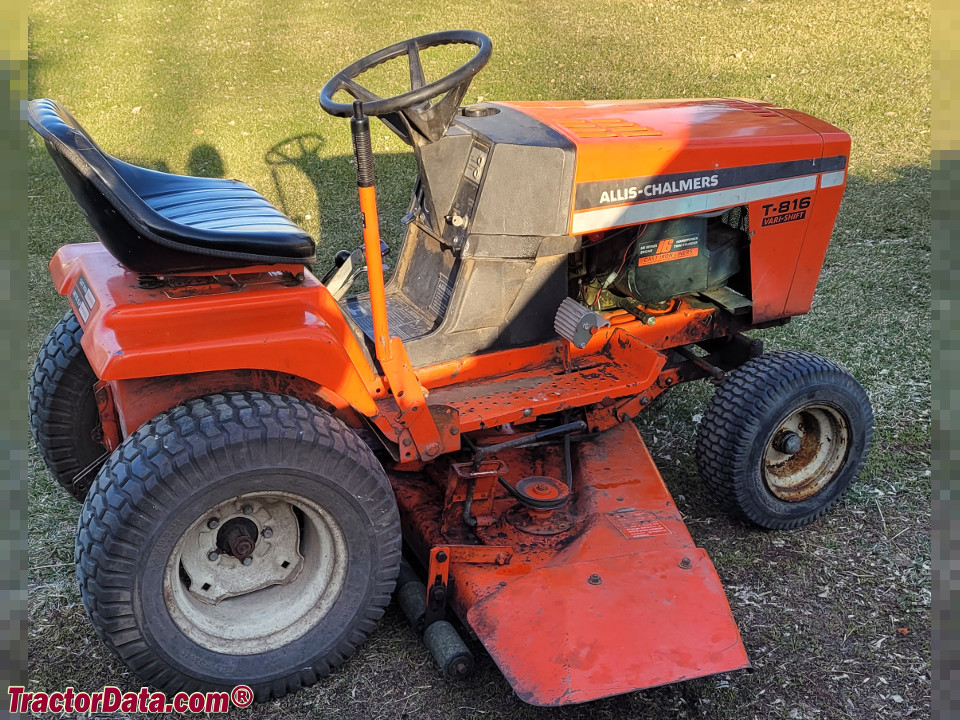

Allis-Chalmers T-816 with mower deck.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers Lawn Tractors Allis Chalmers T-816 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers T-816.

Estimated Continuous Field Runtime: 2.6 hrs

Approximately 2.6 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
