Apollo 254
The Apollo 254 is a tractor produced by Apollo. It is equipped with a 93.5 ci 1.5 L engine. The listed engine power is Diesel (gross): 25 hp / 18.6 kW. Transmission: 9 forward and 3 reverse. Operating weight: 3649 lbs (with loader) 1655 kg.
Engine Power
Diesel (gross): 25 hp / 18.6 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
9 forward and 3 reverse
Operating Weight
3649 lbs (with loader)
1655 kg
Overview
 | 2012 -
Compact Utility tractorChangfa built |
|---|---|
2012 - | |
Compact Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Production | |
|---|---|
Distributor | Apollo |
Manufacturer | Changfa |
Compact Utility tractor | |
Built in China | |
Apollo 254 Engine | |
|---|---|
Changfa 1.5L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
Apollo 254 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Apollo 254 Power | |
|---|---|
Engine (gross) | 25 hp
18.6 kW |
PTO (claimed) | 23 hp
17.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Dual plate wet disc brakes | |
Two-post foldable ROPS with canopy. | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at 24"/610mm) | 1323 lbs
600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 3649 lbs
1655 kg |
Front tire | 6.00x16 |
Rear tire | 9.5x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 70 |
Engine
| 2012 -
Compact Utility tractorChangfa built |
|---|---|
2012 - | |
Compact Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Engine Detail — 93.5 ci / 1.5 L Diesel
Manufacturer | Changfa CF3B25T |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 93.5 ci
1.5 L |
Power (gross) | 25 hp
18.6 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2012 -
Compact Utility tractorChangfa built |
|---|---|
2012 - | |
Compact Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Clutch | 203mm dry disc |
Three speeds (I, II, III) in three ranges (L, M, H and R). | |
 | |
Dimensions
| 2012 -
Compact Utility tractorChangfa built |
|---|---|
2012 - | |
Compact Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Apollo 254 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00x16. Rear: 9.5x24 |
Dimensions | |
|---|---|
Length | 153.5 inches
389 cm |
Width | 56.7 inches
144 cm |
Height (ROPS) | 91.3 inches
231 cm |
Weight | 3649 lbs (with loader)
1655 kg |
Ground clearance | 11 inches
27 cm |
Attachments
| 2012 -
Compact Utility tractorChangfa built |
|---|---|
2012 - | |
Compact Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Photos

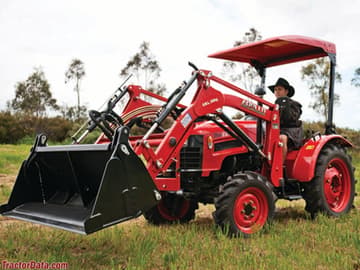

Apollo 254 with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Apollo 254 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Apollo 254.
Estimated Continuous Field Runtime: 5.1 hrs
Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Apollo 254 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Apollo 254.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
