Apollo 454
The Apollo 454 is a tractor produced by Apollo. It is equipped with a 155.2 ci 2.5 L engine. The listed engine power is Diesel (gross): 45 hp / 33.6 kW. Transmission: 8 forward and reverse. Operating weight: 4365 lbs (with loader) 1979 kg.
Engine Power
Diesel (gross): 45 hp / 33.6 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
8 forward and reverse
Operating Weight
4365 lbs (with loader)
1979 kg
Overview
 | 2009 - ????
Compact Utility tractorChangfa built |
|---|---|
2009 - ???? | |
Compact Utility tractor | |
Changfa built | |
2009 - ???? | |
|---|---|
Compact Utility tractor | |
Changfa built |
Production | |
|---|---|
Distributor | Apollo |
Manufacturer | Changfa |
Compact Utility tractor | |
Built in China | |
Apollo 454 Engine | |
|---|---|
Changfa 2.5L 4-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Apollo 454 Transmission | |
|---|---|
8-speed shuttle | |
Transmission details ...  |
Apollo 454 Power | |
|---|---|
Engine (gross) | 45 hp
33.6 kW |
PTO (claimed) | 42 hp
31.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Dual plate wet disc brakes | |
Two-post foldable ROPS with canopy. | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at 24"/610mm) | 1662 lbs
753 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 4365 lbs
1979 kg |
Front tire | 6.5x16 |
Rear tire | 12.4x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 80 |
Engine
| 2009 - ????
Compact Utility tractorChangfa built |
|---|---|
2009 - ???? | |
Compact Utility tractor | |
Changfa built | |
2009 - ???? | |
|---|---|
Compact Utility tractor | |
Changfa built |
Engine Detail — 155.2 ci / 2.5 L Diesel
Manufacturer | Changfa CF4B35T |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 155.2 ci
2.5 L |
Power (gross) | 45 hp
33.6 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2009 - ????
Compact Utility tractorChangfa built |
|---|---|
2009 - ???? | |
Compact Utility tractor | |
Changfa built | |
2009 - ???? | |
|---|---|
Compact Utility tractor | |
Changfa built |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | 228.6mm dry disc |
Four gears (1-4) in two ranges (low/high) with shuttle shifting. | |
 | |
Dimensions
| 2009 - ????
Compact Utility tractorChangfa built |
|---|---|
2009 - ???? | |
Compact Utility tractor | |
Changfa built | |
2009 - ???? | |
|---|---|
Compact Utility tractor | |
Changfa built |
Apollo 454 Tires | |
|---|---|
Standard tires (ag) | Front: 6.5x16. Rear: 12.4x24 |
Industrial front | 10x16.5 |
Industrial rear | 16.5x22.5 |
Dimensions | |
|---|---|
Length | 167.3 inches
424 cm |
Width | 61 inches
154 cm |
Height (ROPS) | 90.6 inches
230 cm |
Weight | 4365 lbs (with loader)
1979 kg |
Ground clearance | 13.2 inches
33 cm |
Attachments
| 2009 - ????
Compact Utility tractorChangfa built |
|---|---|
2009 - ???? | |
Compact Utility tractor | |
Changfa built | |
2009 - ???? | |
|---|---|
Compact Utility tractor | |
Changfa built |
Photos

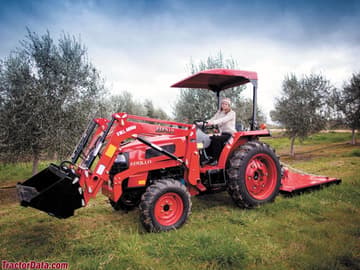

Apollo 454 with front-end loader and rotary cutter (slasher).
Recommended Implements & Sizing Guide
Engineering recommendations for Apollo 454 based on its 45 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Apollo 454.
Estimated Continuous Field Runtime: 4.1 hrs
Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (9.5 gal / 36 L).
Estimated 75% Load Fuel Burn~2.3 gal/hr (8.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Apollo 454 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Apollo 454.
Converted Equivalents:
Horsepower (HP)45 hp
Kilowatts (kW)33.6 kW
Metric Horsepower (PS / CV)45.6 PS
Direct Competitor Comparison
Compare Apollo 454 against same-era industry alternatives in the same horsepower class.
Current Model
Apollo
Apollo 454
Engine Power:Diesel (gross): 45 hp / 33.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 404
Engine Power:40.8
Production Years:1961 - 1968
