Apollo 854
The Apollo 854 is a tractor produced by Apollo. It is equipped with a 235.4 ci 3.9 L engine. The listed engine power is Diesel (gross): 85 hp / 63.4 kW. Transmission: 10 forward and 2 reverse. Operating weight: 10360 lbs (with loader) 4699 kg.
Engine Power
Diesel (gross): 85 hp / 63.4 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
10 forward and 2 reverse
Operating Weight
10360 lbs (with loader)
4699 kg
Overview
 | 2010 -
Utility tractorChangfa built |
|---|---|
2010 - | |
Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Utility tractor | |
Changfa built |
Production | |
|---|---|
Distributor | Apollo |
Manufacturer | Changfa |
Utility tractor | |
Built in China | |
Apollo 854 Engine | |
|---|---|
Changfa 3.9L 4-cyl diesel | |
Fuel tank | 26.4 gal
99.9 L |
Engine details ...  | |
Apollo 854 Transmission | |
|---|---|
10-speed gear | |
Transmission details ...  |
Apollo 854 Power | |
|---|---|
Engine (gross) | 85 hp
63.4 kW |
PTO (claimed) | 78 hp
58.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Dual plate wet disc brakes | |
Two-post foldable ROPS with canopy. | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 11.6 gpm
43.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position control |
Rear lift (at 24"/610mm) | 3086 lbs
1399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 10360 lbs
4699 kg |
Front tire | 12.4x24 |
Rear tire | 18.4x30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 80 |
Engine
| 2010 -
Utility tractorChangfa built |
|---|---|
2010 - | |
Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Utility tractor | |
Changfa built |
Engine Detail — 235.4 ci / 3.9 L Diesel
Manufacturer | Changfa CF4C80T |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 235.4 ci
3.9 L |
Power (gross) | 85 hp
63.4 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2010 -
Utility tractorChangfa built |
|---|---|
2010 - | |
Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Utility tractor | |
Changfa built |
Transmission — 10 forward and 2 reverse gear
Type | gear |
Gears | 10 forward and 2 reverse |
Clutch | 304.8mm dry disc |
Five gears (1-5) plus reverse (R) in two ranges (low/high). | |
 | |
Dimensions
| 2010 -
Utility tractorChangfa built |
|---|---|
2010 - | |
Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Utility tractor | |
Changfa built |
Apollo 854 Tires | |
|---|---|
Standard tires (ag) | Front: 12.4x24. Rear: 18.4x30 |
Dimensions | |
|---|---|
Length | 224.4 inches
569 cm |
Width | 78.7 inches
199 cm |
Height (ROPS) | 110.2 inches
279 cm |
Weight | 10360 lbs (with loader)
4699 kg |
Ground clearance | 15.35 inches
38 cm |
Attachments
| 2010 -
Utility tractorChangfa built |
|---|---|
2010 - | |
Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Utility tractor | |
Changfa built |
Photos

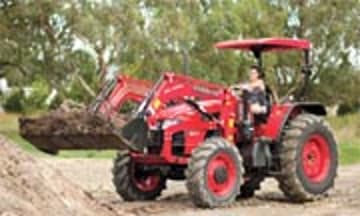

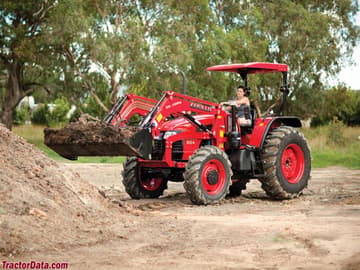

Apollo 854 with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Apollo 854 based on its 85 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Apollo 854.
Estimated Continuous Field Runtime: 6 hrs
Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).
Estimated 75% Load Fuel Burn~4.4 gal/hr (16.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Apollo 854 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Apollo 854.
Converted Equivalents:
Horsepower (HP)85 hp
Kilowatts (kW)63.4 kW
Metric Horsepower (PS / CV)86.2 PS
Direct Competitor Comparison
Compare Apollo 854 against same-era industry alternatives in the same horsepower class.
Current Model
Apollo
Apollo 854
Engine Power:Diesel (gross): 85 hp / 63.4 kW
★ Baseline Reference
