Apollo 354
The Apollo 354 is a tractor produced by Apollo. It is equipped with a 93.5 ci 1.5 L engine. The rated power output is 35 hp 26.1 kW. Transmission: 8 forward and reverse. Operating weight: 4090 lbs (with loader) 1855 kg.
Engine Power
35 hp
26.1 kW
Fuel & Capacities
9.2 gal
34.8 L
Transmission
8 forward and reverse
Operating Weight
4090 lbs (with loader)
1855 kg
Apollo 354 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2010 -
Compact Utility tractorChangfa built |
|---|---|
2010 - | |
Compact Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Production | |
|---|---|
Distributor | Apollo |
Manufacturer | Changfa |
Compact Utility tractor | |
Built in China | |
Apollo 354 Engine | |
|---|---|
Changfa 1.5L 3-cyl diesel | |
Fuel tank | 9.2 gal
34.8 L |
Engine details ...  | |
Apollo 354 Transmission | |
|---|---|
8-speed shuttle | |
Transmission details ...  |
Apollo 354 Power | |
|---|---|
Engine (gross) | 35 hp
26.1 kW |
PTO (claimed) | 32 hp
23.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Dual plate wet disc brakes | |
Two-post foldable ROPS with canopy. | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at 24"/610mm) | 1662 lbs
753 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 4090 lbs
1855 kg |
Front tire | 6.00x16 |
Rear tire | 11.2x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 80 |
Engine
| 2010 -
Compact Utility tractorChangfa built |
|---|---|
2010 - | |
Compact Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Engine Detail — 93.5 ci / 1.5 L Diesel
Manufacturer | Changfa CF3B28T |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 93.5 ci
1.5 L |
Power (gross) | 35 hp
26.1 kW |
Fuel system | direct injection |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2010 -
Compact Utility tractorChangfa built |
|---|---|
2010 - | |
Compact Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | 228.6mm dry disc |
Four gears (1-4) in two ranges (low/high) with shuttle shifting. | |
 | |
Dimensions
| 2010 -
Compact Utility tractorChangfa built |
|---|---|
2010 - | |
Compact Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Apollo 354 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00x16. Rear: 11.2x24 |
Industrial front | 9.0x15 |
Industrial rear | 15x19.5 |
Dimensions | |
|---|---|
Length | 157.5 inches
400 cm |
Width | 56.7 inches
144 cm |
Height (ROPS) | 90.6 inches
230 cm |
Weight | 4090 lbs (with loader)
1855 kg |
Ground clearance | 12 inches
30 cm |
Attachments
| 2010 -
Compact Utility tractorChangfa built |
|---|---|
2010 - | |
Compact Utility tractor | |
Changfa built | |
2010 - | |
|---|---|
Compact Utility tractor | |
Changfa built |
Photos

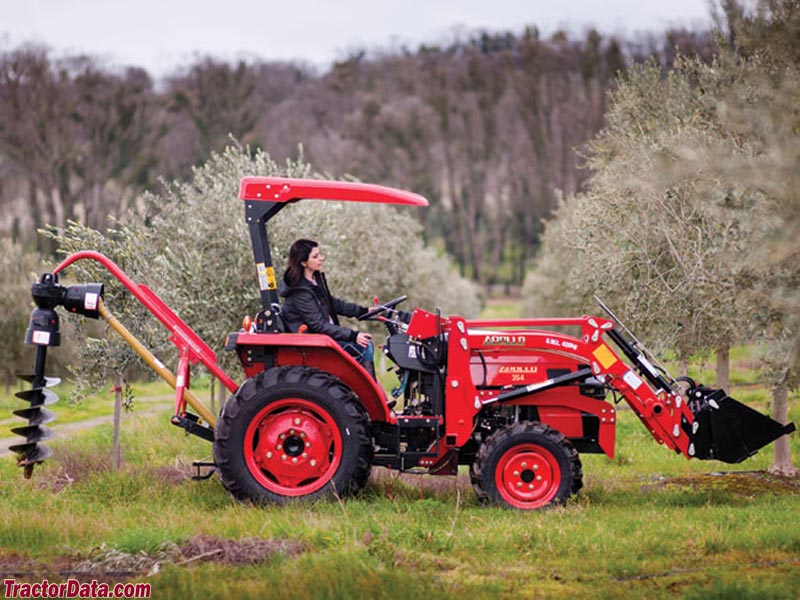

Apollo 254 with front-end loader and post-hole digger.
