Apollo 1104
The Apollo 1104 is a tractor produced by Apollo. It is equipped with a 302.1 ci 5.0 L engine. The listed engine power is Diesel (gross): 110 hp / 82.0 kW. Transmission: 10 forward and 2 reverse. Operating weight: 10710 lbs (ROPS with loader) 4858 kg.
Engine Power
Diesel (gross): 110 hp / 82.0 kW
Fuel & Capacities
44.9 gal
169.9 L
Transmission
10 forward and 2 reverse
Operating Weight
10710 lbs (ROPS with loader)
4858 kg
Overview
 | 2012 -
Utility tractorChangfa built |
|---|---|
2012 - | |
Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Utility tractor | |
Changfa built |
Production | |
|---|---|
Distributor | Apollo |
Manufacturer | Changfa |
Utility tractor | |
Built in China | |
Apollo 1104 Engine | |
|---|---|
Yuchai 5.0L 4-cyl diesel | |
Fuel tank | 44.9 gal
169.9 L |
Engine details ...  | |
Apollo 1104 Transmission | |
|---|---|
10-speed gear | |
Transmission details ...  |
Apollo 1104 Power | |
|---|---|
Engine (gross) | 110 hp
82.0 kW |
PTO (claimed) | 100 hp
74.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Dual plate wet disc brakes | |
Two-post foldable ROPS with canopy. Optional cab with air-conditioning. | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 11.6 gpm
43.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position control |
Rear lift (at 24"/610mm) | 3086 lbs
1399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 10710 to 11240 pounds |
Front tire | 12.4x24 |
Rear tire | 18.4x30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 80 |
Engine
| 2012 -
Utility tractorChangfa built |
|---|---|
2012 - | |
Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Utility tractor | |
Changfa built |
Engine Detail — 302.1 ci / 5.0 L Diesel
Manufacturer | Yuchai YC4A110Z-T20 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 302.1 ci
5.0 L |
Power (gross) | 110 hp
82.0 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2012 -
Utility tractorChangfa built |
|---|---|
2012 - | |
Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Utility tractor | |
Changfa built |
Transmission — 10 forward and 2 reverse gear
Type | gear |
Gears | 10 forward and 2 reverse |
Five gears (1-5) plus reverse (R) in two ranges (low/high). | |
 | |
Dimensions
| 2012 -
Utility tractorChangfa built |
|---|---|
2012 - | |
Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Utility tractor | |
Changfa built |
Apollo 1104 Tires | |
|---|---|
Standard tires (ag) | Front: 12.4x24. Rear: 18.4x30 |
Dimensions | |
|---|---|
Length | 224.4 inches
569 cm |
Width | 82.6 inches
209 cm |
Height (ROPS) | 110.2 inches
279 cm |
Height (cab) | 109.4 inches
277 cm |
Weight | 10710 lbs (ROPS with loader)
4858 kg |
11240 lbs (Cab with loader)
5098 kg | |
Ground clearance | 15.35 inches
38 cm |
Attachments
| 2012 -
Utility tractorChangfa built |
|---|---|
2012 - | |
Utility tractor | |
Changfa built | |
2012 - | |
|---|---|
Utility tractor | |
Changfa built |
Photos

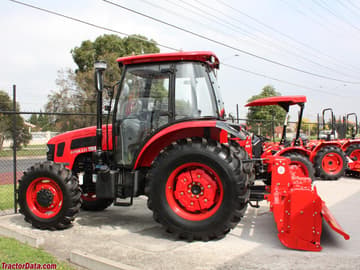

Apollo 1104 with cab and rear tiller.
Apollo 1104 with cab and rear tiller.
Apollo 1104 with ROPS and front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Apollo 1104 based on its 110 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Apollo 1104.
Estimated Continuous Field Runtime: 7.8 hrs
Approximately 7.8 hours of continuous field operation at ~75% rated power on a full tank (44.9 gal / 170 L).
Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Apollo 1104 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Apollo 1104.
Converted Equivalents:
Horsepower (HP)110 hp
Kilowatts (kW)82 kW
Metric Horsepower (PS / CV)111.5 PS
Direct Competitor Comparison
Compare Apollo 1104 against same-era industry alternatives in the same horsepower class.
Current Model
Apollo
Apollo 1104
Engine Power:Diesel (gross): 110 hp / 82.0 kW
★ Baseline Reference
