CaseIH 7230

The CaseIH 7230 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 172.41 hp 128.6 kW. Transmission: 24 forward and 6 reverse. Operating weight: 15750 to 17790 pounds.

Overview

	1994 - 1996 Magnum 7200 SeriesRow-Crop tractor
1994 - 1996
Magnum 7200 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $87,000 in 1996

CaseIH 7230 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 7230 Power
PTO (claimed)	170 hp 126.8 kW
Drawbar (tested)	155.35 hp 115.8 kW
PTO (tested)	184.97 hp 137.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	95 gal 359.6 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	45.5 gal 172.2 L
Pressure	2300 psi 158.6 bar
Valves	2 to 4
SCV flow	22 gpm 83.3 lpm
Total flow	29 gpm 109.8 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower-link draft sensing
Rear lift	10875 lbs 4932 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
	540/1000 (dual-shaft 1.375)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	15750 to 17790 pounds
Front tire	14L-16.1
Rear tire	20.8R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
Magnum 7200 Series published in 1996, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Fuel system	mechanical injection
Air cleaner	dual paper elements
Pre-heating	block heater OptOptional
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	31 qts 29.3 L

CaseIH 7230 Engine

Transmission

Transmission options

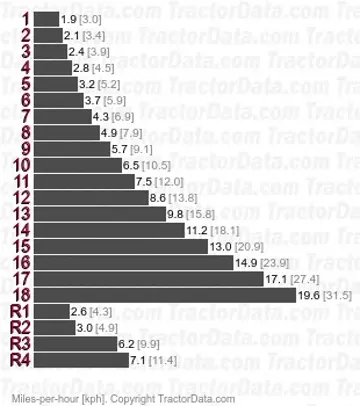

18-speed full power shift
24-speed creeper

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Transmission
Type	creeper
Gears	24 forward and 6 reverse

Dimensions

CaseIH 7230 Tires
Ag front	14L-16.1
Ag rear	20.8R-38

Dimensions
Wheelbase	118.3 inches 300 cm
2WD Clearance (front axle)	22.8 inches 57 cm
4WD Clearance (front axle)	17.6 inches 44 cm
Rear axle	4.0 by 114 inches 101 by 2895 mm
Rear axle	4.0 by 120 inches 101 by 3048 mm
2WD Front tread	60 to 88 inches 152 to 223 cm
4WD Front tread	60 to 95 inches 152 to 241 cm

CaseIH 7230 Weight
2WD Shipping	15750 lbs 7144 kg
4WD Shipping	16750 lbs 7597 kg
Operating	17,790 lbs 8069 kg
Ballasted	21,680 lbs 9834 kg

Tests

Tractor Tests
OECD 1611: diesel 18-speed 4WD
OECD 1710: diesel 18-speed 4WD

OCED Tractor Test 1611
Diesel 18-speed 4WD July 1988 - 1988, Link: OCED Tractor Test 1611 file
PTO performance
Max power	179.10 hp 133.6 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Power at rated engine speed	172.57 hp 128.7 kW
Fuel use	9.7 gal/hour 36.7 l/hour
Drawbar performance
Max power	155.35 hp 115.8 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Gear 9 used for power test.
Max pull	20926 lbs 9492 kg
Gear 5 used for pull test.

OCED Tractor Test 1710
Diesel 18-speed 4WD May 1 - 10, 1996 Link: OCED Tractor Test 1710 file
PTO performance
Max power	184.97 hp 137.9 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Power at rated engine speed	172.41 hp 128.6 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Drawbar performance
Max power	147.97 hp 110.3 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Gear 8 used for power test.
Max pull	16884 lbs 7658 kg
Gear 4 used for pull test.
