CaseIH JX1095C

The CaseIH JX1095C is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The rated power output is 90 hp 67.1 kW. Transmission: 12 forward and reverse. Operating weight: 6,980 lbs 3166 kg.

Overview

	2005 - 2008 JXC SeriesUtility tractor
2005 - 2008
JXC Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Jesi, Italy

CaseIH JX1095C Engine
CNH 4.5L 4-cyl diesel
Fuel tank	23.5 gal 88.9 L
Engine details ...

CaseIH JX1095C Power
Engine (gross)	90 hp 67.1 kW
PTO (claimed)	77 hp 57.4 kW
Drawbar (tested)	74.3 hp 55.4 kW
PTO (tested)	83.8 hp 62.5 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.

Hydraulics
Type	open center
Pressure	2755 psi 190.0 bar
Valves	1 to 4
Pump flow	16.9 gpm 64.0 lpm
Steering flow	9.4 gpm 35.6 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower-link draft sensing.
Rear lift	3960 lbs 1796 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	86 inches 218 cm
Weight	6,980 lbs 3166 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery CCA	730
Battery volts	12

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer	CNH
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	273.7 ci 4.5 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Power (gross)	90 hp 67.1 kW
Fuel system	direct injection
Air cleaner	dual paper elements
Pre-heating	thermostart
Compression	17.5:1
Rated RPM	2300
Starter volts	12

Transmission

Transmission options
12-speed mechanical shuttle
12-speed power shuttle

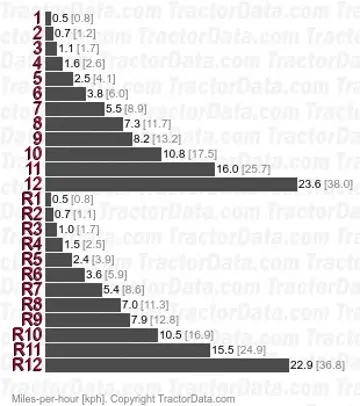

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse

Dimensions

CaseIH JX1095C Tires

Dimensions
Wheelbase	86 inches 218 cm
Length	157 inches 398 cm
Width	69.6 inches*Minimum width. 176 cm
Operating weight	6,980 lbs 3166 kg
Ballasted weight	8,045 lbs 3649 kg

CaseIH JX1095C Height
ROPS	95.6 inches 242 cm
	75.6 inches (lowered) 192 cm
Cab	91.5 inches 232 cm

Tests

OCED Tractor Test 2347
Diesel 12-speed 4WD September 1 - October 1, 2005 Link: OCED Tractor Test 2347 file
PTO performance
Max power	83.8 hp 62.5 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated engine speed	83.5 hp 62.3 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated PTO speed	83.4 hp 62.2 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Drawbar performance
Max power	74.3 hp 55.4 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Gear 8 used for power test.
