County 1164
The County 1164 is a tractor produced by County. It is equipped with a 401.4 ci 6.6 L engine. The listed engine power is Diesel (listed): 116 hp / 86.5 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 8955 to 12825 pounds.
Engine Power
Diesel (listed): 116 hp / 86.5 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
35 gal
132.5 L
Transmission
8 forward and 2 reverse
Operating Weight
12825 lbs
5817 kg
Overview
 | 1971 - 1976 |
|---|
Production | |
|---|---|
Manufacturer | County |
Built in Fleet, England | |
The County 1164 was based on the gearbox and transmission from the Ford 5000 and the engine from the Ford 8000. | |
County 1164 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 35 gal
132.5 L |
Engine details ...  | |
County 1164 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
County 1164 Power | |
|---|---|
Engine | 116 hp
86.5 kW |
PTO (claimed) | 96 hp
71.6 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Final drives | planetary |
Differential lock | mechanical front and rear |
Power steering | |
Wet disc brakes | |
Cab standard, optional open platform. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | top-link draft sensing |
Rear lift | 3858.8 lbs
1750 kg |
55954 lbsOptOptional
25380 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1900 |
1000@2060 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Weight | 8955 to 12825 pounds |
Front tire | 16.9-30 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 22 |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
Buyer's Guide '73 published in 1973, by Ford | |
Buyer's Guide '74 published in 1974, by Ford | |
County 4-wheel drive tractor published in 1972, by Ford |
Engine
Engine Detail — 401.4 ci / 6.6 L Diesel
Manufacturer | Ford 401S |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 401.4 ci
6.6 L |
Bore/Stroke | 4.4x4.4 inches
112 x 112 mm |
Power | 116 hp
86.5 kW |
Compression | 16.5:1 |
Rated RPM | 2300 |
Torque | 292 lb-ft
396.0 Nm |
Torque RPM | 1500 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |

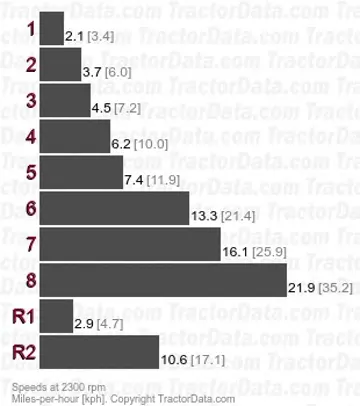

Transmission
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
 | |
Dimensions
County 1164 Tires | |
|---|---|
Ag front | 16.9-30 |
Ag rear | 16.9-30 |
Ag front | 18.4x30 |
16.9x34 | |
13.6/12x38 | |
Ag rear | 18.4x30 |
16.9x34 | |
13.6/12x38 | |
Dimensions | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Length | 169.5 inches
430 cm |
Height (steering wheel) | 70 inches
177 cm |
Shipping weight | 8955 lbs
4061 kg |
Operating weight | 12825 lbs
5817 kg |
Ground clearance | 15.4 inches
39 cm |
Front tread | 68 to 84 inches
172 to 213 cm |
Rear tread | 68 to 84 inches
172 to 213 cm |
Photos

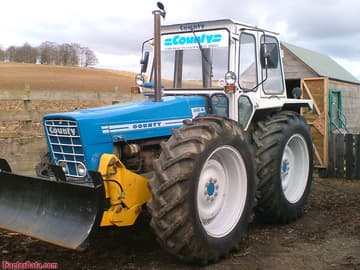

County 1164 with cab.

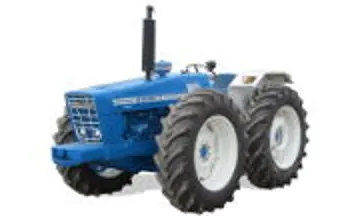

Open-station County 1164.
Recommended Implements & Sizing Guide
Engineering recommendations for County 1164 based on its 116 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1164.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (35 gal / 132.5 L).
Estimated 75% Load Fuel Burn~6 gal/hr (22.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1164 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1164.
Converted Equivalents:
Horsepower (HP)116 hp
Kilowatts (kW)86.5 kW
Metric Horsepower (PS / CV)117.6 PS
Direct Competitor Comparison
Compare County 1164 against same-era industry alternatives in the same horsepower class.
Current Model
County
County 1164
Engine Power:Diesel (listed): 116 hp / 86.5 kW
★ Baseline Reference
