County 1454
The County 1454 is a tractor produced by County. It is equipped with a 401 ci 6.6 L engine. The listed engine power is Diesel (gross): 145 hp / 108.1 kW. Transmission: Dual Power. Drive type: 4x4 4WD. Operating weight: 12880 lbs 5842 kg.
Engine Power
Diesel (gross): 145 hp / 108.1 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
43.3 gal
163.9 L
Transmission
Dual Power
Operating Weight
12880 lbs
5842 kg
Overview
 | 1972 - 1978
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Built in Fleet, England | |
County 1454 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 43.3 gal
163.9 L |
Engine details ...  | |
County 1454 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
County 1454 Power | |
|---|---|
Engine (gross) | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Differential lock | mechanical four-wheel |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with available air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Total flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5954 lbs
2700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.375) |
Engine RPM | 1000@1935 |
Dimensions & Tires | |
|---|---|
Wheelbase | 81.1 inches
205 cm |
Weight | 12880 lbs
5842 kg |
Front tire | 18.4/15-34 |
Rear tire | 18.4/15-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
1254 - 1454 published in 1972, by County |
Engine
Engine Detail — 401 ci / 6.6 L Diesel
Manufacturer | Ford 401DFT |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 401 ci
6.6 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power (gross) | 145 hp
108.1 kW |
Rated RPM | 2200 |
Torque | 382.1 lb-ft
518.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Dual Power
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
Dimensions
County 1454 Tires | |
|---|---|
Ag front | 18.4/15-34 |
Ag rear | 18.4/15-34 |
Ag front | 16.9/14-34 |
23.1/18-30 | |
23.1/18-34 | |
Ag rear | 16.9/14-34 |
23.1/18-30 | |
23.1/18-34 | |
Dimensions | |
|---|---|
Wheelbase | 81.1 inches
205 cm |
Length | 158.8 inches
403 cm |
Width | 93.4 inches
237 cm |
Height (cab) | 116.5 inches
295 cm |
Weight | 12880 lbs
5842 kg |
Ground clearance | 15 inches
38 cm |
Front tread | 68 to 88 inches
172 to 223 cm |
Rear tread | 68 to 88 inches
172 to 223 cm |
Photos

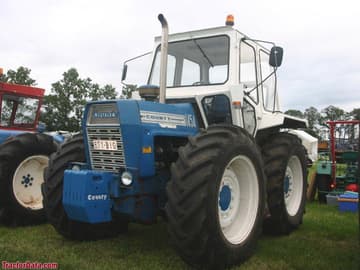

County 1454 with cabin, right side.
County 1454 with cabin, left side.
County 1454 with ROPS, right side.
County 1454 with ROPS, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for County 1454 based on its 145 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1454.
Estimated Continuous Field Runtime: 5.7 hrs
Approximately 5.7 hours of continuous field operation at ~75% rated power on a full tank (43.3 gal / 163.9 L).
Estimated 75% Load Fuel Burn~7.5 gal/hr (28.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1454 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1454.
Converted Equivalents:
Horsepower (HP)145 hp
Kilowatts (kW)108.1 kW
Metric Horsepower (PS / CV)147 PS
Direct Competitor Comparison
Compare County 1454 against same-era industry alternatives in the same horsepower class.
Current Model
County
County 1454
Engine Power:Diesel (gross): 145 hp / 108.1 kW
★ Baseline Reference
