Cub Cadet LGTX 1050

The Cub Cadet LGTX 1050 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Hydro-Gear 320-0610. Operating weight: 548 lbs 248 kg.

Overview

	2012 - 2014 1000 SeriesLawn tractor
2012 - 2014
1000 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Cub Cadet LGTX 1050 Engine
25HP Kohler 724cc 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet LGTX 1050 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47.5 inches 120 cm
Weight	548 lbs 248 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	25
Battery CCA	260
Battery volts	12

References
Series 1000 published in 2012, by Cub Cadet
Series 1000 published in 2013, by Cub Cadet
Series 1000 published in 2014, by Cub Cadet

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler SV730
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power	25 hp 18.6 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear 320-0610

Transmission	Hydro-Gear 320-0610
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2 qts 1.9 L

Dimensions

Cub Cadet LGTX 1050 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Wheelbase	47.5 inches 120 cm
Length	69 inches 175 cm
Weight	548 lbs 248 kg

Attachments

50" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual lift
Cutting width	50 inches 127 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

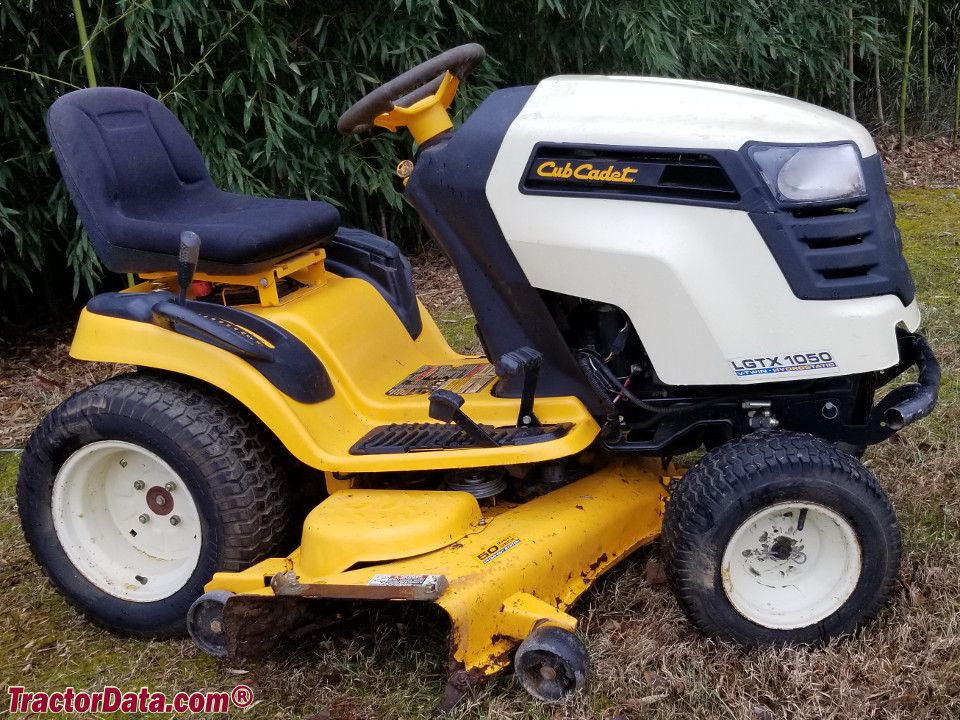

Cub Cadet LGTX 1050

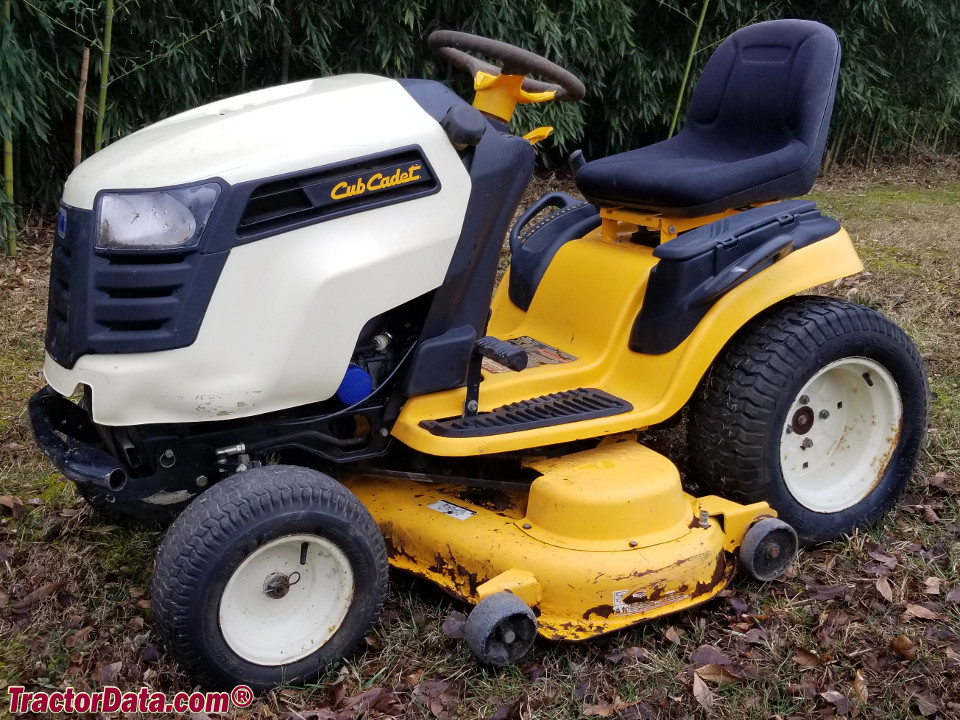

Cub Cadet LGTX 1050
