Cub Cadet RZT 54 KW
The Cub Cadet RZT 54 KW is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Hydro-Gear ZT-2800. Operating weight: 557 lbs 252 kg.
Engine Power
Gasoline (gross): 25 hp / 18.6 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear ZT-2800
Operating Weight
557 lbs
252 kg
Overview
 | 2007 - 2012
Model year 2007-20102011-2012
RZT SeriesZero-turn mower
RZT Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Original price | $3,600 (2006 ) |
$3,700 (2008 ) | |
Variants | |
|---|---|
54KH | Kohler engine |
54KW | Kawasaki engine |
Cub Cadet RZT 54 Engine | |
|---|---|
25HP Kawasaki 675cc 2-cyl gasoline | |
Engine details ...  |
Cub Cadet RZT 54 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 43.5 inches
110 cm |
Weight | 557 lbs
252 kg |
Front tire | 13x5.0-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |

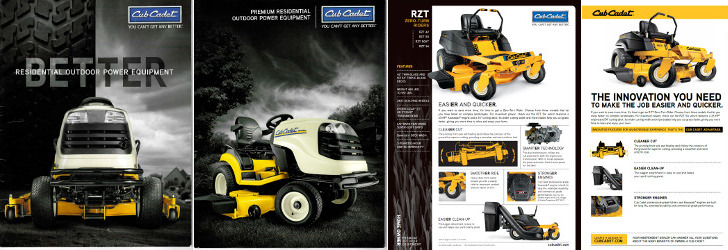

References | |
|---|---|
 | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet | |
RZT Zero-Turn Mowers published in 2009, by Cub Cadet | |
RZT Zero-Turn Mowers published in 2011, by Cub Cadet |
Engine
Engine Detail — 675 cc / 41.2 ci Gasoline
Manufacturer | Kawasaki FH721 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 675 cc
41.2 ci |
Bore/Stroke | 2.96x2.99 inches
75 x 76 mm |
Power (gross) | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Hydro-Gear ZT-2800
Transmission | Hydro-Gear ZT-2800 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet RZT 54 Tires | |
|---|---|
Lawn/turf front | 13x5.0-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 43.5 inches
110 cm |
Length | 67 inches
170 cm |
Weight | 557 lbs
252 kg |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 54 inches
137 cm |
Overall width | 57 inches
144 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos
Cub Cadet RZT 54 KW tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet RZT 54 KW based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet RZT 54 KW.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet RZT 54 KW Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet RZT 54 KW.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
Direct Competitor Comparison
Compare Cub Cadet RZT 54 KW against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet RZT 54 KW
Engine Power:Gasoline (gross): 25 hp / 18.6 kW
★ Baseline Reference
