Cub Cadet SLT1550
The Cub Cadet SLT1550 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Hydro-Gear 0510. Operating weight: 548 lbs*Weight with mower deck. 248 kg.
Engine Power
Gasoline (gross): 25 hp / 18.6 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Hydro-Gear 0510
Operating Weight
548 lbs*Weight with mower deck.
248 kg
Overview
 | 2006 - 2008
1500 SeriesLawn tractor
1500 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet SLT1550 Engine | |
|---|---|
25HP Kohler 724cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Cub Cadet SLT1550 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 548 lbs
248 kg |
Front tire | 15x6-6 |
Rear tire | 22x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 235 |
Battery volts | 12 |
References | |
|---|---|
 | |
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Kohler SV730 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.27x2.64 inches
83 x 67 mm |
Power (gross) | 25 hp
18.6 kW |
Air cleaner | paper element |
Compression | 9:1 |
Rated RPM | 3375 |
Torque | 46.6 lb-ft
63.2 Nm |
Torque RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Point gap | 0.030 inches
0.762 mm |
Oil capacity | 1.9 qts
1.8 L |
Oil change | 50 h |
Cub Cadet SLT1550 Engine | |
|---|---|
 | |
Image courtesy of White's Farm Supply |
Transmission
Transmission — Hydro-Gear 0510
Transmission | Hydro-Gear 0510 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.4 qts
2.3 L |
 | |
Dimensions
Cub Cadet SLT1550 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 22x9.5-12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 68 inches
172 cm |
Width | 54 inches
137 cm |
Height | 43 inches
109 cm |
Weight | 548 lbs*Weight with mower deck.
248 kg |
Ground clearance | 4.5 inches
11 cm |
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Other attachments for the Super LT 1550 included the model 190-190 three-bag grass collector. |
50" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual lift | |
Cutting width | 50 inches
127 cm |
Belt | 954-04077 |
Overall width | 54 inches
137 cm |
Photos

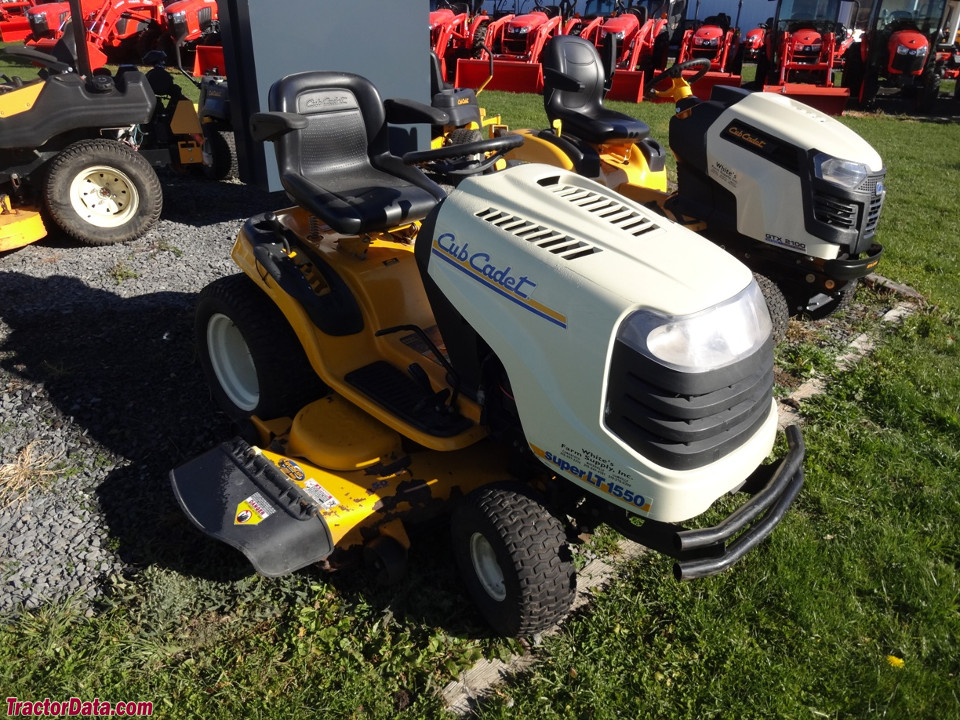

Cub Cadet SLT1550
Cub Cadet SLT1550
Cub Cadet SLT1550
Cub Cadet SLT1550
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet SLT1550 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet SLT1550.
Estimated Continuous Field Runtime: 2.7 hrs
Approximately 2.7 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet SLT1550 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet SLT1550.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
Direct Competitor Comparison
Compare Cub Cadet SLT1550 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet SLT1550
Engine Power:Gasoline (gross): 25 hp / 18.6 kW
★ Baseline Reference
