Cub Cadet SLTX 1050
The Cub Cadet SLTX 1050 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 25 hp 18.6 kW. Transmission: infinite forward and reverse. Operating weight: 548 lbs (with deck) 248 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
infinite forward and reverse
Operating Weight
548 lbs (with deck)
248 kg
Cub Cadet Lawn Tractors Cub Cadet SLTX 1050 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - 2014
LTX 1000 SeriesLawn tractor |
|---|---|
2009 - 2014 | |
LTX 1000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price | $2,599 (2011) |
Cub Cadet SLTX 1050 Engine | |
|---|---|
25HP Kohler 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet SLTX 1050 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector and pinion |
Open operator station. High-back Cub Comfort seat with arm rests. Six inches travel with 12 positions. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Weight | 548 lbs
248 kg |
Front tire | 16x6.5 |
Rear tire | 22x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 260 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 1000 published in 2009, by Cub Cadet | |
Series 1000 published in 2011, by Cub Cadet | |
Series 1000 published in 2012, by Cub Cadet |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler Courage |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled V-twin OHV |
Power (gross) | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.9 qts
1.8 L |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2 qts
1.9 L |
 | |
Dimensions
Cub Cadet SLTX 1050 Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 22x9.5 |
Dimensions | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Length | 69 inches
175 cm |
Weight | 548 lbs (with deck)
248 kg |
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
Snowblower | |
Blade |
50" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual lift | |
Cutting width | 50 inches
127 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 12 |
Photos

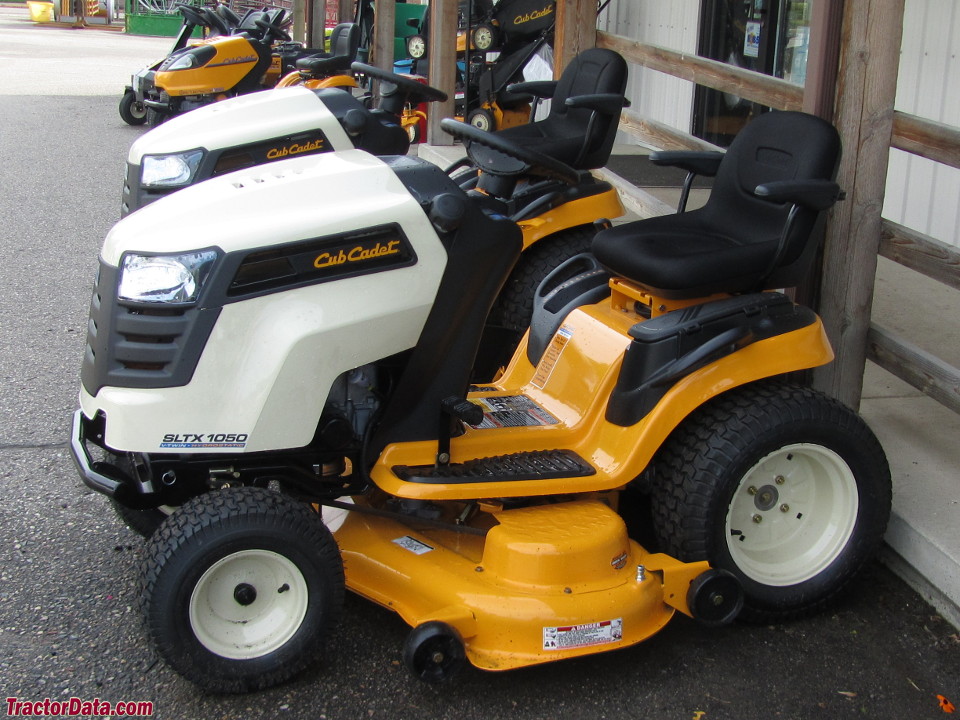

Cub Cadet SLTX 1050

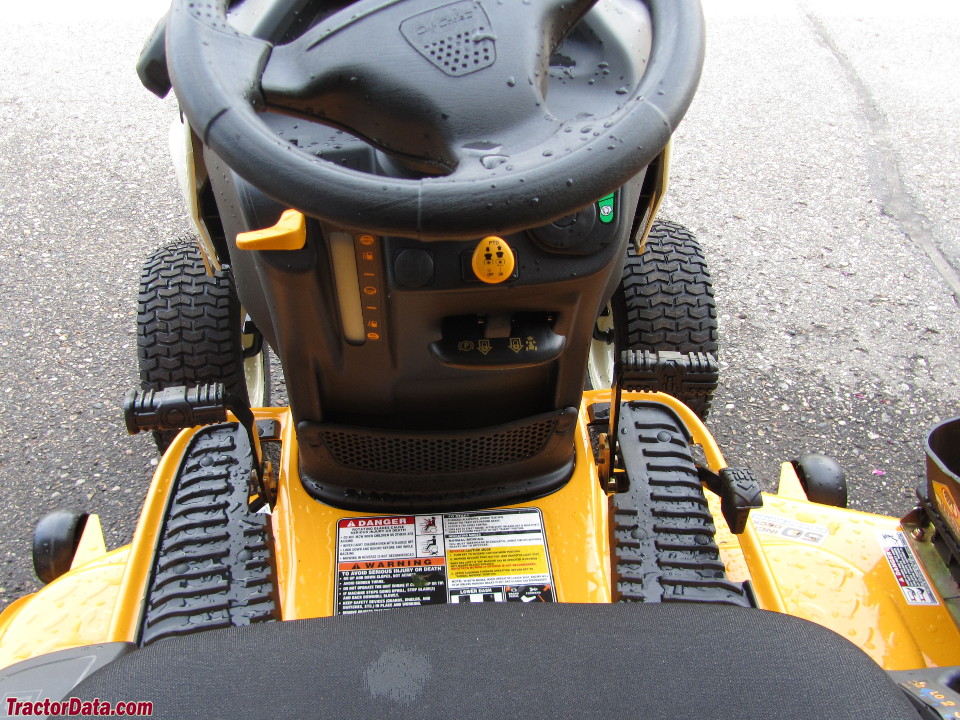

Cub Cadet SLTX 1050 operator station and controls.
