Cub Cadet XT1 GT50

The Cub Cadet XT1 GT50 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Tuff Torq K58. Operating weight: 530 lbs 240 kg.

Overview

	2015 - XT1 Enduro SeriesGarden tractor
2015 -
XT1 Enduro Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor
Original price was $2,700 in 2015

Cub Cadet XT1 GT50 Engine
25HP Kohler 725cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet XT1 GT50 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station. Optional sunshade. Optional soft-side weather cab. Cub Connect

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	530 lbs 240 kg
Front tire	16x6.5
Rear tire	22x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	12
Battery CCA	230
Battery volts	12

References
New XT Enduro Series Lawn and Garden Tractors published in 2015, by Cub Cadet
Lawn and Garden Tractors published in 2016, by Cub Cadet

Engine

Engine Detail — 725 cc / 44.24 ci Gasoline

Manufacturer	Kohler KT740
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	725 cc 44.24 ci
Bore/Stroke	3.3x2.6 inches 84 x 66 mm
Power (gross)	25 hp 18.6 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Tuff Torq K58

Transmission	Tuff Torq K58
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet XT1 GT50 Tires
Lawn/turf front	16x6.5
Lawn/turf rear	22x9.5

Dimensions
Wheelbase	47 inches 119 cm
Length	72.5 inches 184 cm
Height	44.5 inches 113 cm
Weight	530 lbs 240 kg
Front axle	Cast-iron

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

50" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual with spring-assist lift
Cutting width	50 inches 127 cm
Overall width	60 inches 152 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	12

Photos

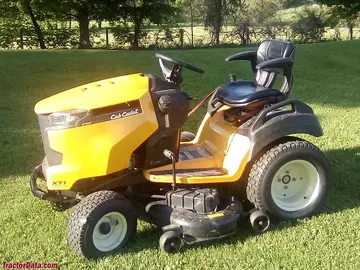

Cub Cadet XT1 GT50 with mower deck.

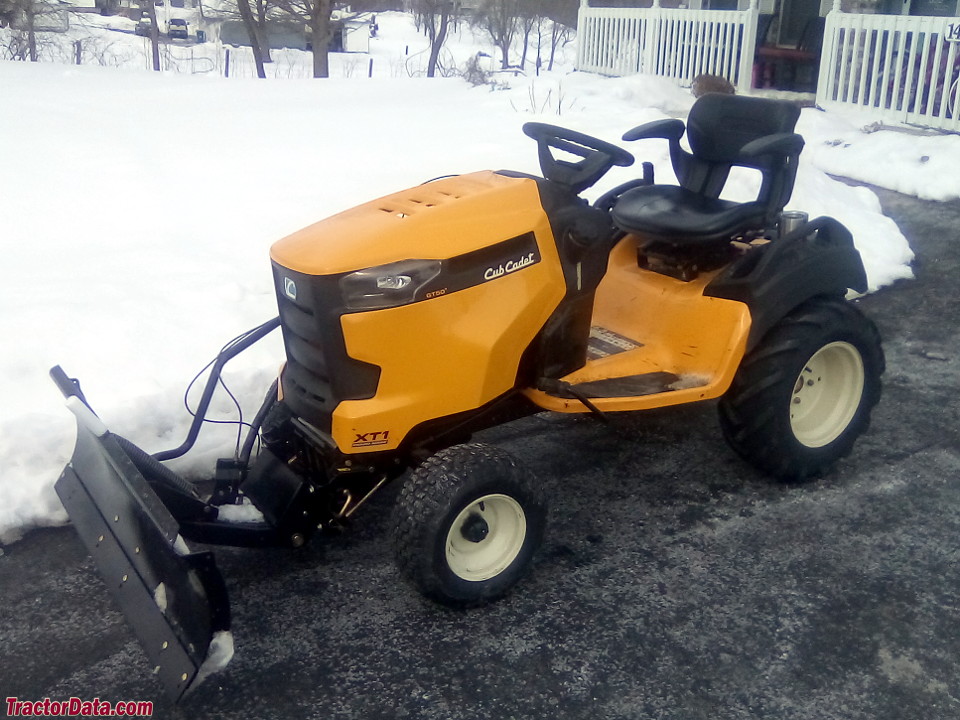

Cub Cadet XT1 GT50 with snow blade.

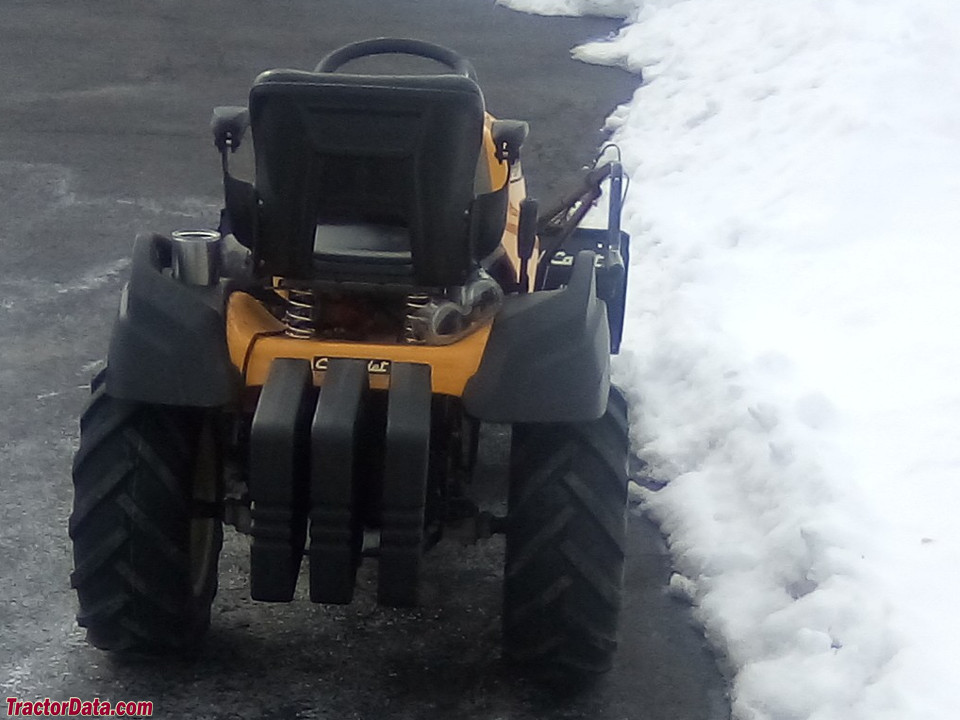

Cub Cadet XT1 GT50 with snow blade.
