Cub Cadet XT3 GSX
The Cub Cadet XT3 GSX is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Hydro-Gear BDU-10. Operating weight: 800 lbs 362 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Hydro-Gear BDU-10
Operating Weight
800 lbs
362 kg
Cub Cadet Lawn Tractors Cub Cadet XT3 GSX Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015 - 2022
XT3 Enduro SeriesGarden tractor |
|---|---|
2015 - 2022 | |
XT3 Enduro Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Original price was $4,600 in 2015 | |
Cub Cadet XT3 GSX Engine | |
|---|---|
25HP Kohler 721cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet XT3 GSX Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Steering | electric power |
Disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Weight | 800 lbs
362 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 25 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
New XT Enduro Series Lawn and Garden Tractors published in 2015, by Cub Cadet | |
Lawn and Garden Tractors published in 2016, by Cub Cadet |
Engine
Engine Detail — 721 cc / 44 ci Gasoline
Manufacturer | Kohler CH740 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 721 cc
44 ci |
Bore/Stroke | 3.27x2.64 inches
83 x 67 mm |
Power (gross) | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.9 qts
1.8 L |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet XT3 GSX Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-8 |
Dimensions | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Weight | 800 lbs
362 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

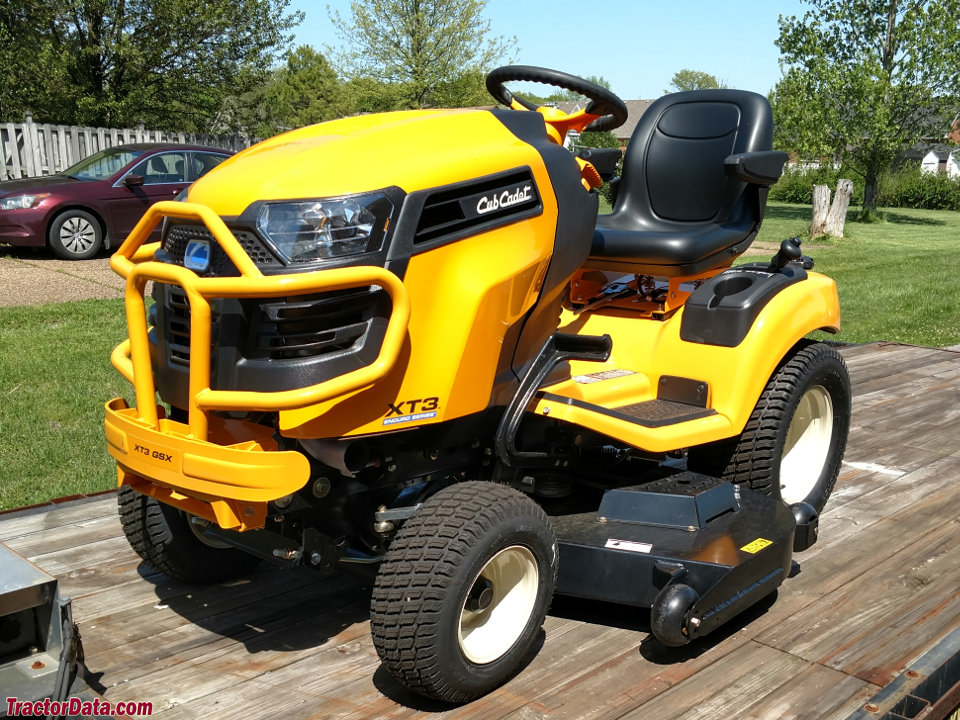

Cub Cadet XT3 GSX
Cub Cadet XT3 GSX
