Deutz-Allis 5215
The Deutz-Allis 5215 is a tractor produced by Deutz Allis. It is equipped with a 61.2 ci 1.0 L engine. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1,518 lbs (2WD hydro) 688 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
3.7 gal
14.0 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
1,518 lbs (2WD hydro)
688 kg
Deutz Allis Deutz-Allis 5215 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1989
5200 Compact SeriesCompact Utility tractorHinomoto built |
|---|---|
1987 - 1989 | |
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built | |
1987 - 1989 | |
|---|---|
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built |
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Hinomoto |
Compact Utility tractor | |
Original price was $8,000 in 1989 | |
Variants | |
|---|---|
5215H | hydrostatic transmission |
Deutz-Allis 5215 Engine | |
|---|---|
Toyosha 1.0L 3-cyl diesel | |
Engine details ...  |
Deutz-Allis 5215 Power | |
|---|---|
Engine (gross) | 18 hp
13.4 kW |
PTO (claimed) | 15 hp
11.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | manual |
Steering | power *Optional with four-wheel drive. |
Differential mechanical drum brakes | |
Two-post fixed ROPS. Optional canopy and soft cab. | |
Capacity | |
|---|---|
Fuel | 3.7 gal
14.0 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Capacity | 4.5 gal
17.0 L |
Valves | 0 to 2 |
Pump flow | 3.56 gpm
13.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1,210 lbs
548 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission (gear) |
independent (hydro) | |
Rear PTO Type | 540 |
Mid PTO | independent *Mid PTO available with hydrostatic transmission. |
Mid PTO Type | 2114 |
Dimensions & Tires | |
|---|---|
Wheelbase | 55.3 inches
140 cm |
Weight | 1518 to 1727 pounds |
Front tire | 5.00-10 |
2WD Rear tire | 9.5-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
5200 Series Compact Tractors published in 1987, by Deutz-Allis | |
5200 Series published in 1988, by Deutz-Allis |
Engine
| 1987 - 1989
5200 Compact SeriesCompact Utility tractorHinomoto built |
|---|---|
1987 - 1989 | |
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built | |
1987 - 1989 | |
|---|---|
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built |
Engine Detail — 61.2 ci / 1.0 L Diesel
Manufacturer | Toyosha |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.2 ci
1.0 L |
Bore/Stroke | 2.87x3.15 inches
73 x 80 mm |
Power (gross) | 18 hp
13.4 kW |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 23:1 |
Rated RPM | 2500 |
Idle RPM | 750-2700 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.8 qts
2.6 L |
Coolant capacity | 3.7 qts
3.5 L |
Transmission
| 1987 - 1989
5200 Compact SeriesCompact Utility tractorHinomoto built |
|---|---|
1987 - 1989 | |
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built | |
1987 - 1989 | |
|---|---|
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built |
Transmission options | |
|---|---|
9-speed synchromesh | |
hydrostatic |
Transmission — 9 forward and 3 reverse synchromesh
Type | synchromesh |
Gears | 9 forward and 3 reverse |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Oil capacity | 18 qts
17.0 L |
With 9.5-16 rear tires. | |
 | |
Dimensions
| 1987 - 1989
5200 Compact SeriesCompact Utility tractorHinomoto built |
|---|---|
1987 - 1989 | |
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built | |
1987 - 1989 | |
|---|---|
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built |
Deutz-Allis 5215 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.00-10. Rear: 9.5-16 |
4WD Standard tires (ag) | Front: 6.00-12. Rear: 9.5-16 |
Lawn/turf front | 20.5x8.00-10 |
Lawn/turf rear | 29x12.00-15 |
Dimensions | |
|---|---|
Wheelbase | 55.3 inches
140 cm |
Length | 107.5 inches
273 cm |
Width | 44.7 inches
113 cm |
Weight | 1,518 lbs (2WD hydro)
688 kg |
1,727 lbs (4WD hydro)
783 kg | |
2WD Clearance (front axle) | 12.8 inches
32 cm |
4WD Clearance (front axle) | 10.6 inches
26 cm |
2WD Clearance (rear axle) | 9.7 inches
24 cm |
4WD Clearance (rear axle) | 9.8 inches
24 cm |
Deutz-Allis 5215 Height | |
|---|---|
2WD Steering wheel | 49.4 inches
125 cm |
4WD Steering wheel | 50 inches
127 cm |
2WD ROPS | 73 inches
185 cm |
4WD ROPS | 72.8 inches
184 cm |
Attachments
| 1987 - 1989
5200 Compact SeriesCompact Utility tractorHinomoto built |
|---|---|
1987 - 1989 | |
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built | |
1987 - 1989 | |
|---|---|
5200 Compact Series | |
Compact Utility tractor | |
Hinomoto built |
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader |
60" Mower deck | |
|---|---|
Type | mid-mount Deutz-Allis |
3-blade | |
Cutting width | 60 inches
152 cm |
Photos

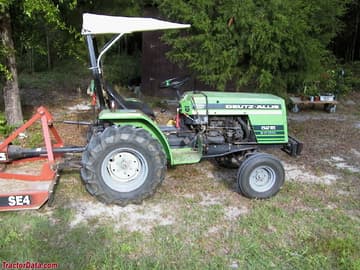

Deutz-Allis 5215
Deutz Allis Deutz-Allis 5215 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Deutz-Allis 5215.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
