Deutz-Allis 5220 HST

The Deutz-Allis 5220 HST is a tractor produced by Deutz Allis. It is equipped with a 82.8 ci 1.4 L engine. The listed engine power is Diesel (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1969 to 2189 pounds.

Engine Power

Diesel (gross): 21 hp / 15.7 kW

Fuel & Capacities

5.8 gal 22.0 L

Transmission

infinite forward and reverse (3-range)

Operating Weight

1969 to 2189 pounds

Overview

	1988 - 1989 5200 SeriesCompact Utility tractorHinomoto built 5200 Series Compact Utility tractor Hinomoto built

Production
Distributor	Deutz-Allis
Manufacturer	Hinomoto
Compact Utility tractor

Deutz-Allis 5220 HST Engine
Toyosha 1.4L 3-cyl diesel
Engine details ...

Deutz-Allis 5220 HST Transmission
hydrostatic
Transmission details ...

Deutz-Allis 5220 HST Power
Engine (gross)	21 hp 15.7 kW
PTO (claimed)	17 hp 12.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	manual
Steering	power OptOptional
Differential mechanical drum brakes
Two-post fixed ROPS with optional canopy. Cab optional.

Capacity
Fuel	5.8 gal 22.0 L
Hydraulic system	6.9 gal 26.1 L

Hydraulics
Type	open center
Capacity	6.9 gal 26.1 L
Valves	0 to 2
Pump flow	4.75 gpm 18.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1694 lbs 768 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Mid PTO	independent
Mid PTO Type	2227

Dimensions & Tires
Wheelbase	59.1 inches 150 cm
Weight	1969 to 2189 pounds
Front tire	4.00-15
2WD Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

5200 Series published in 1988, by Deutz-Allis

Engine

Engine Detail — 82.8 ci / 1.4 L Diesel

Manufacturer	Toyosha
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	82.8 ci 1.4 L
Bore/Stroke	3.14x3.54 inches 80 x 90 mm
Power (gross)	21 hp 15.7 kW
Air cleaner	dry
Pre-heating	glow plugs
Compression	23:1
Rated RPM	2500
Idle RPM	850-2700
Starter	electric
Starter volts	12
Oil capacity	3.7 qts 3.5 L
Coolant capacity	4.2 qts 4.0 L

Transmission

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Oil capacity	27.6 qts 26.1 L
With 13.6-16 R3 tires.

Dimensions

Deutz-Allis 5220 HST Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-24
4WD Standard tires (ag)	Front: 7.00-14. Rear: 9.5-14
2WD Lawn/turf front	24x8.50-12
4WD Lawn/turf front	25x8.50-14
Lawn/turf rear	13.6-16

Dimensions
Wheelbase	59.1 inches 150 cm
Length	114 inches 289 cm
Width	47.2 inches 119 cm
Height (steering wheel)	54.3 inches 137 cm
Height (ROPS)	78.7 inches 199 cm
2WD Weight	1969 lbs 893 kg
4WD Weight	2189 lbs 992 kg
2WD Clearance (front axle)	14.9 inches 37 cm
4WD Clearance (front axle)	12.2 inches 30 cm

Attachments

Attachment overview
61" mid-mount mower deck
Blade
Front-end loader

61" Mower deck
Type	mid-mount Deutz-Allis
	3-blade
Cutting width	61 inches 154 cm

Photos

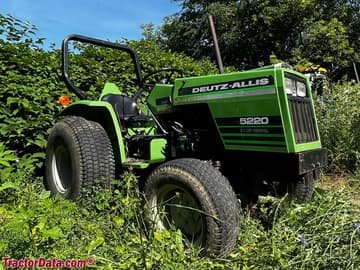

Deutz-Allis 5220 HST

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Allis Deutz-Allis 5220 HST based on its 21 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Allis Deutz-Allis 5220 HST.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5.8 gal / 22 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Allis Deutz-Allis 5220 HST Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Deutz-Allis 5220 HST.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)21 hp

Kilowatts (kW)15.7 kW

Metric Horsepower (PS / CV)21.3 PS
