Fendt Farmer 270V

The Fendt Farmer 270V is a tractor produced by Fendt. It is equipped with a 230.1 ci 3.8 L engine. The rated power output is 69.7 hp 52.0 kW. Transmission: 20 forward and reverse. Operating weight: 5004 to 5159 pounds.

Overview

	1987 - 2002 Farmer 200 SeriesOrchard/Vineyard tractor
1987 - 2002
Farmer 200 Series
Orchard/Vineyard tractor

Production
Manufacturer	Fendt
Orchard/Vineyard tractor

Fendt Farmer 270V Engine
KHD 3.8L 4-cyl diesel
Fuel tank	15.85 gal 60.0 L
Engine details ...

Fendt Farmer 270V Transmission
20-speed
Transmission details ...

Fendt Farmer 270V Power
Engine	69.7 hp 52.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Mechanical drum brakes
Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.

Hydraulics
Pressure	2611 psi 180.0 bar
Total flow	12.4 gpm 46.9 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750
	540/750/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	82.6 inches 209 cm
Weight	5004 to 5159 pounds
Front tire	10.0/75-15.3
Rear tire	9.5-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Charging volts	14
Battery volts	12
Battery AH	88

References

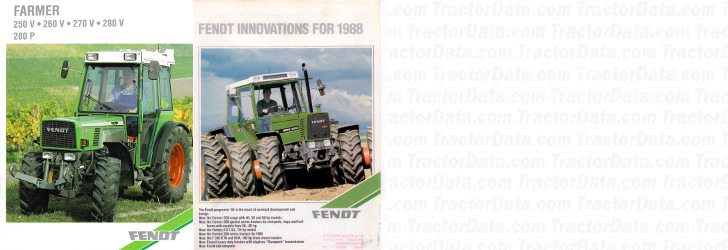

Farmer 250V 260V 270V 280V 280P published in 1996, by Fendt
Innovations for 1988 published by Fendt

Engine

Engine Detail — 230.1 ci / 3.8 L Diesel

Manufacturer	KHD F4L912
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	230.1 ci 3.8 L
Bore/Stroke	3.937x4.72 inches 100 x 120 mm
Power	69.7 hp 52.0 kW
Rated RPM	2300
Torque	185.1 lb-ft 251.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission — 20 forward and 6 reverse

Gears

20 forward and 6 reverse

Transmission — 20 forward and reverse

Gears

20 forward and reverse

Dimensions

Fendt Farmer 270V Tires
Standard tires (ag)	Front: 10.0/75-15.3. Rear: 9.5-28
Wide Standard tires (ag)	Front: 11LR16. Rear: 13.6R24
Tall Standard tires (ag)	Front: 275/80R18. Rear: 13.6-28

Dimensions
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	82.6 inches 209 cm
Length	135.6 inches 344 cm
Width	46.1 inches 117 cm
Wide Width	48.9 inches 124 cm
Tall Width	51.3 inches 130 cm
2WD Ground clearance	11.5 inches 29 cm
4WD Ground clearance	8.7 inches 22 cm
Wide Ground clearance	10 inches 25 cm
Tall Ground clearance	11.3 inches 28 cm
2WD Front tread	30.3 inches 76 cm
4WD Front tread	31.3 inches 79 cm
Wide Front tread	37.5 inches 95 cm
Tall Front tread	37.8 inches 96 cm
Rear tread	33.7 inches 85 cm
Wide Rear tread	35.3 inches 89 cm
Tall Rear tread	37.7 inches 95 cm

Fendt Farmer 270V Weight
	5004 lbs 2269 kg
Wide	5071 lbs 2300 kg
Tall	5159 lbs 2340 kg
Max capacity	7716 lbs 3499 kg
Max Drawbar	2205 lbs 1000 kg

Fendt Farmer 270V Height
ROPS	87.4 inches 221 cm
Wide ROPS	88.2 inches 224 cm
Tall ROPS	89 inches 226 cm
Cab	85.8 inches 217 cm
Wide/Tall Cab	86.6 inches 219 cm
