Fendt Favorit 510C

The Fendt Favorit 510C is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 44 forward and reverse. Operating weight: 10957 lbs 4970 kg.

Overview

	1993 - 1999 Favorit 500C Series
1993 - 1999
Favorit 500C Series

Production
Manufacturer	Fendt

Fendt Favorit 510C Engine
MWM 4.2L 4-cyl diesel
Fuel tank	35.7 gal 135.1 L
Engine details ...

Fendt Favorit 510C Transmission
44-speed four-speed power shift
Transmission details ...

Fendt Favorit 510C Power
Engine	105 hp 78.3 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with heater. Air-conditioning optional.

Hydraulics
Pump flow	26.9 gpm 101.8 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift	12145 lbs 5508 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000/1400
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	91.9 inches 233 cm
Weight	10957 lbs 4970 kg
Front tire	420/70R24
Rear tire	480/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12
Battery AH	110

References
Favorit 509C 510C 511C 512C 514C 515C published in 1996, by Fendt

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	105 hp 78.3 kW
Rated RPM	2300
Torque	307.6 lb-ft 417.1 Nm
Torque RPM	1500
Starter volts	12

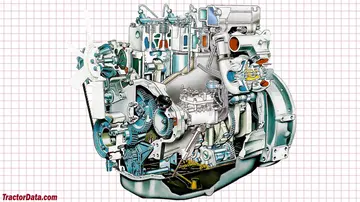

Fendt Favorit 510C Engine

Transmission

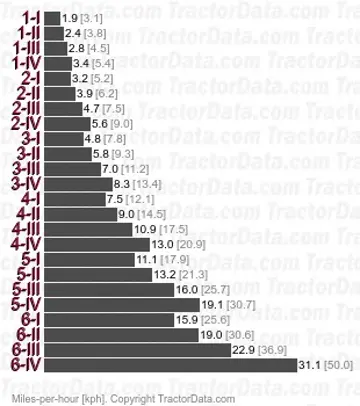

Transmission — 44 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	44 forward and reverse
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.
With 520/70R38 rear tires and 50 kph option.

Dimensions

Fendt Favorit 510C Tires
Standard tires (ag)	Front: 420/70R24. Rear: 480/70R38
Optional tires (ag)	Front: 480/70R24. Rear: 520/70R38
	Front: 480/70R24. Rear: 600/65R38
	Front: 16.9R24. Rear: 18.4R38
	Front: 9.5R32. Rear: 9.5R48
	Front: 11.2R32. Rear: 11.2R48
	Front: 11.2R32. Rear: 12.4R46

Dimensions
Wheelbase	91.9 inches 233 cm
Length	164.6 inches 418 cm
Width	89.8 inches 228 cm
Height (cab)	110 inches 279 cm
Weight	10957 lbs 4970 kg
Max weight	16535 lbs 7500 kg
Ground clearance	21.1 inches 53 cm
Front tread	59.1 to 74.8 inches 150 to 189 cm
Rear tread	59.1 to 74.8 inches 150 to 189 cm

Photos

Fendt Favorit 510C tractor photo
