Ford LT-11
The Ford LT-11 is a tractor produced by Ford Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The rated power output is 11 hp 8.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 540 lbs*Weight with 38 inch mower deck. 244 kg.
Engine Power
11 hp
8.2 kW
Fuel & Capacities
1.8 gal
6.8 L
Transmission
5 forward and 1 reverse
Operating Weight
540 lbs*Weight with 38 inch mower deck.
244 kg
Ford Lawn Tractors Ford LT-11 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

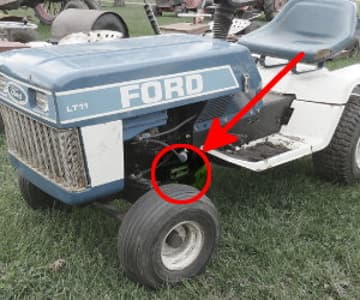

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1984 - 1986
LT SeriesLawn tractorGilson built |
|---|---|
1984 - 1986 | |
LT Series | |
Lawn tractor | |
Gilson built | |
1984 - 1986 | |
|---|---|
LT Series | |
Lawn tractor | |
Gilson built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Gilson |
Lawn tractor | |
Variants | |
|---|---|
LT-11 | gear |
LT-11H | hydrostatic |
Ford LT-11 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 1.8 gal
6.8 L |
Engine details ...  | |
Ford LT-11 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 540 lbs
244 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn, Yard and Garden Equipment published in 1986, by Ford |
Engine
| 1984 - 1986
LT SeriesLawn tractorGilson built |
|---|---|
1984 - 1986 | |
LT Series | |
Lawn tractor | |
Gilson built | |
1984 - 1986 | |
|---|---|
LT Series | |
Lawn tractor | |
Gilson built |
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton 252707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.4375x2.625 inches
87 x 67 mm |
Power | 11 hp
8.2 kW |
Starter volts | 12 |
Oil capacity | 2.25 qts
2.1 L |
Transmission
| 1984 - 1986
LT SeriesLawn tractorGilson built |
|---|---|
1984 - 1986 | |
LT Series | |
Lawn tractor | |
Gilson built | |
1984 - 1986 | |
|---|---|
LT Series | |
Lawn tractor | |
Gilson built |
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
| 1984 - 1986
LT SeriesLawn tractorGilson built |
|---|---|
1984 - 1986 | |
LT Series | |
Lawn tractor | |
Gilson built | |
1984 - 1986 | |
|---|---|
LT Series | |
Lawn tractor | |
Gilson built |
Ford LT-11 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 68.5 inches
173 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 36 inches
91 cm |
Weight | 540 lbs*Weight with 38 inch mower deck.
244 kg |
Attachments
| 1984 - 1986
LT SeriesLawn tractorGilson built |
|---|---|
1984 - 1986 | |
LT Series | |
Lawn tractor | |
Gilson built | |
1984 - 1986 | |
|---|---|
LT Series | |
Lawn tractor | |
Gilson built |
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

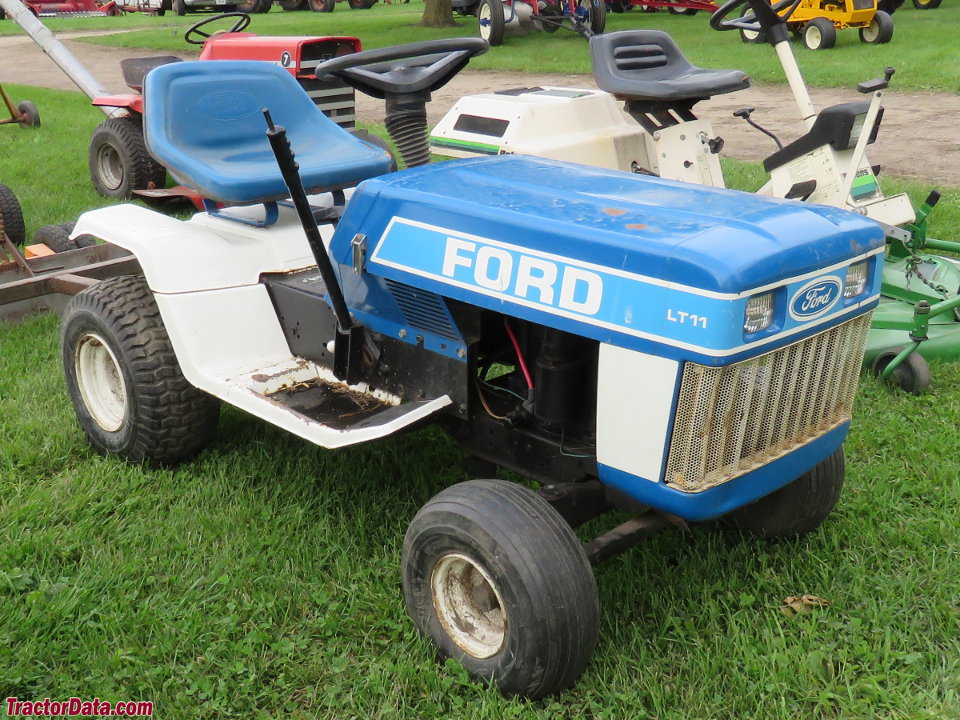

Ford LT-11

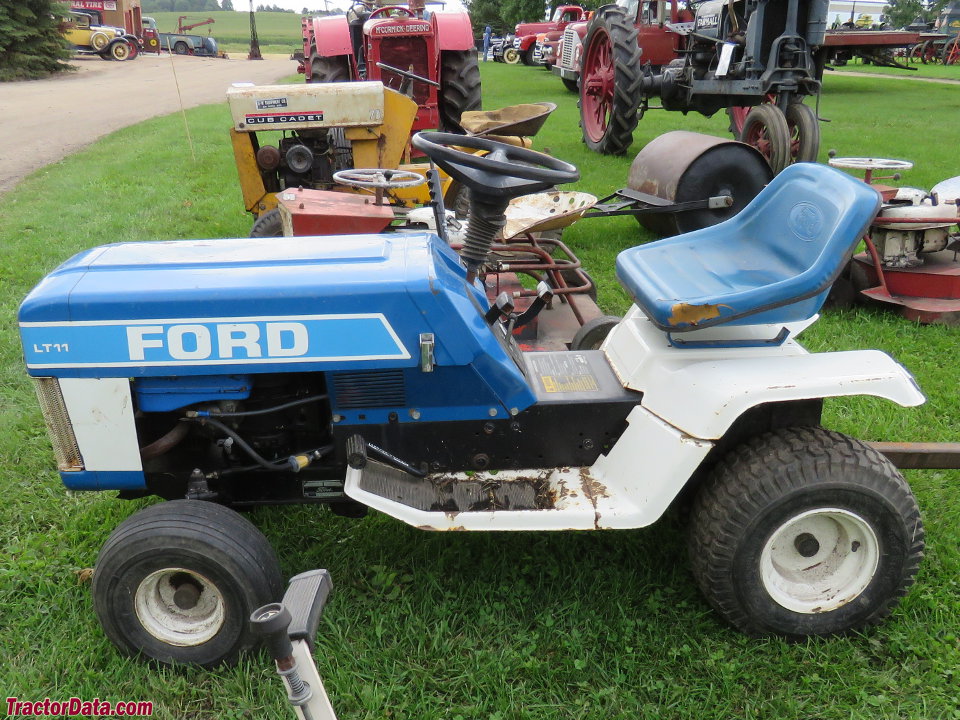

Ford LT-11

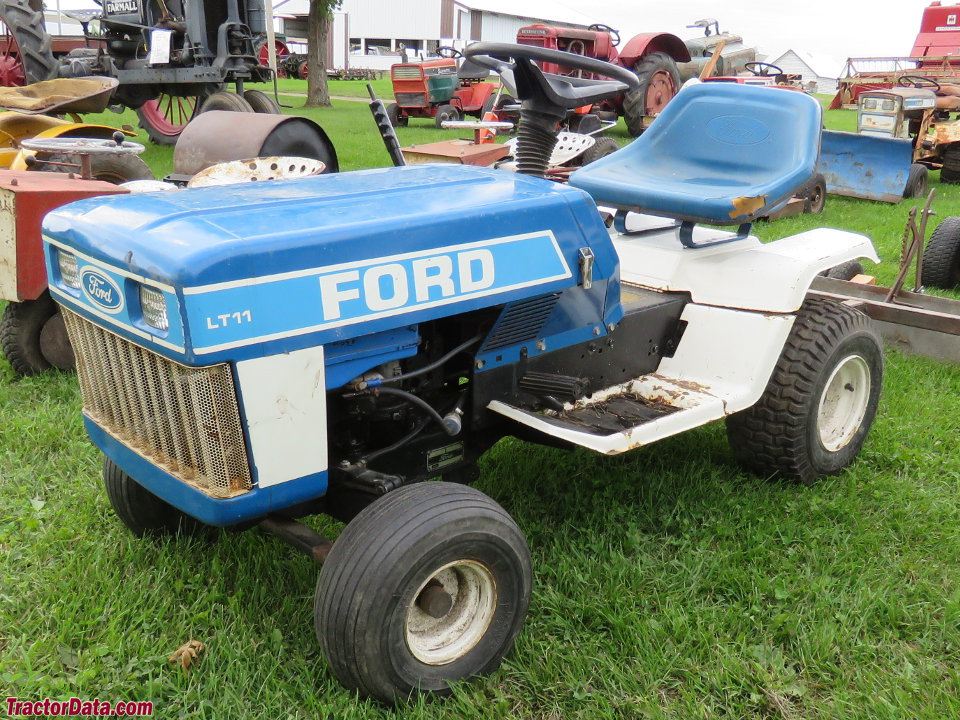

Ford LT-11

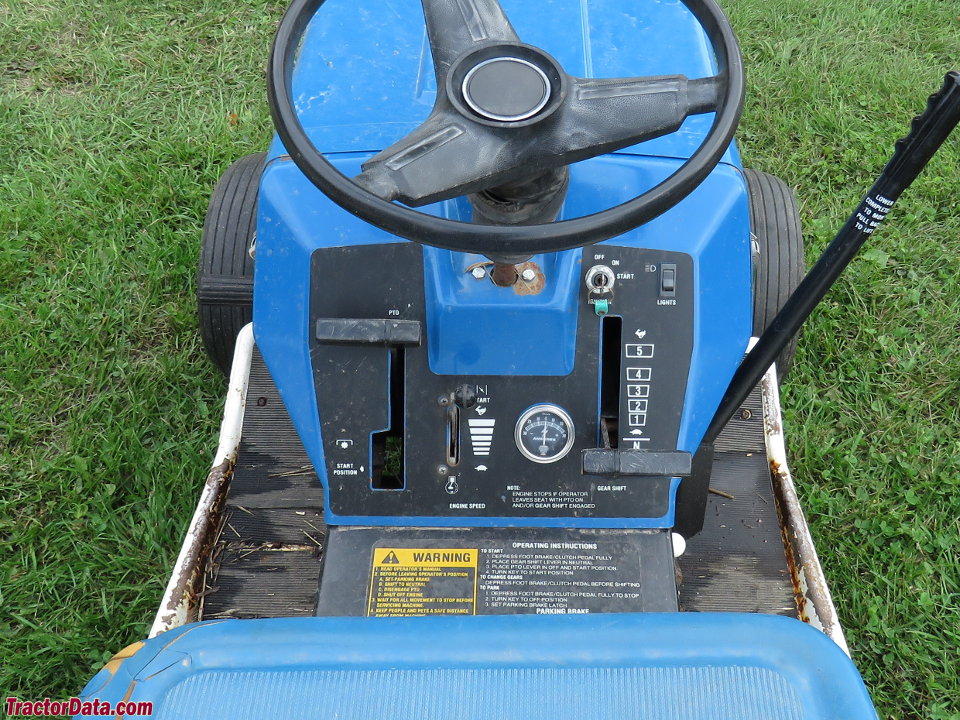

Ford LT-11 operator station and controls.
