Ford LT-110

The Ford LT-110 is a tractor produced by Ford Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 540 lbs 244 kg.

Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
1 gal 3.8 L
Transmission
3 forward and 1 reverse
Operating Weight
540 lbs 244 kg

Overview

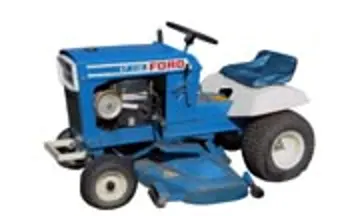

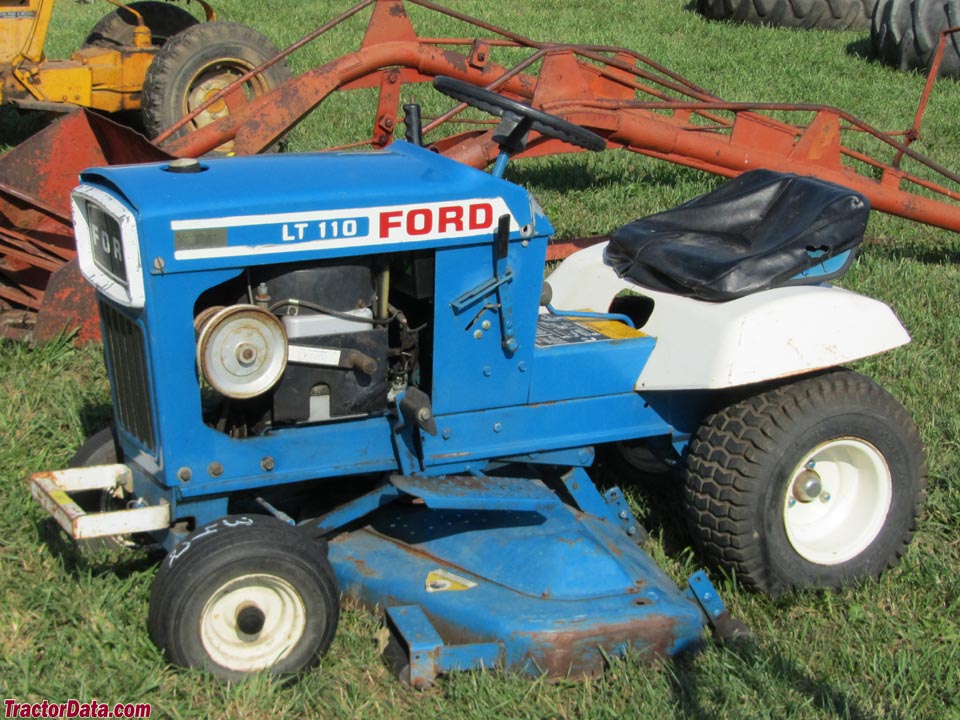

Ford LT-110 tractor photo
1978 - 1981 Lawn tractorJacobsen built Lawn tractor Jacobsen built
Production
Distributor
Ford
Manufacturer
Jacobsen
Lawn tractor
Ford LT-110 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Ford LT-110 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Wheelbase
42.5 inches 107 cm
Weight
540 lbs 244 kg
Front tire
13x5.00-6
Rear tire
18x9.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
LT-110 references literature
Lawn and Garden Tractors published in 1979, by Ford
Consumer Products Salesman's Reference published in 1980, by Ford

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer
Briggs & Stratton 252707
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
399 cc 24.36 ci
Bore/Stroke
3.4375x2.625 inches 87 x 67 mm
Power (gross)
11 hp 8.2 kW
Starter volts
12
Oil capacity
1.25 qts 1.2 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse
Clutch
mechanical pulley
LT-110 belt-driven gear speeds

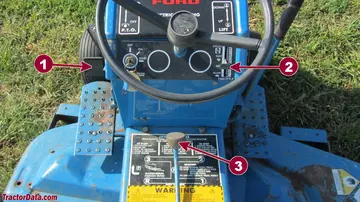

LT-110 Transmission Controls
Ford LT-110 transmission controls
1
Brake
2
Throttle
3
Gear shift

Dimensions

Ford LT-110 Tires
Lawn/turf front
13x5.00-6
Lawn/turf rear
18x9.50-8
Dimensions
Wheelbase
42.5 inches 107 cm
Length
57.75 inches 146 cm
Width
31.75 inches 80 cm
Height (steering wheel)
37 inches 93 cm
Height (hood)
31.25 inches 79 cm
Weight
540 lbs 244 kg
Ground clearance
11 inches (frame) 27 cm
Clearance (front axle)
7 inches 17 cm
Clearance (rear axle)
5.5 inches 13 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
42" Mower deck
Type
mid-mount Ford
Cutting width
42 inches 106 cm

Photos

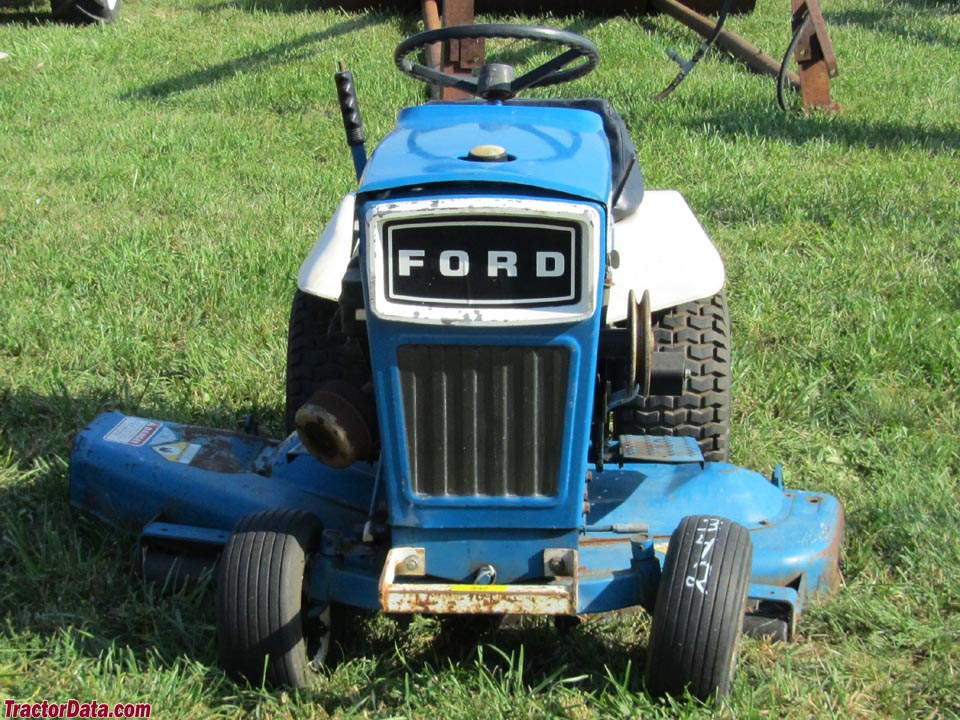

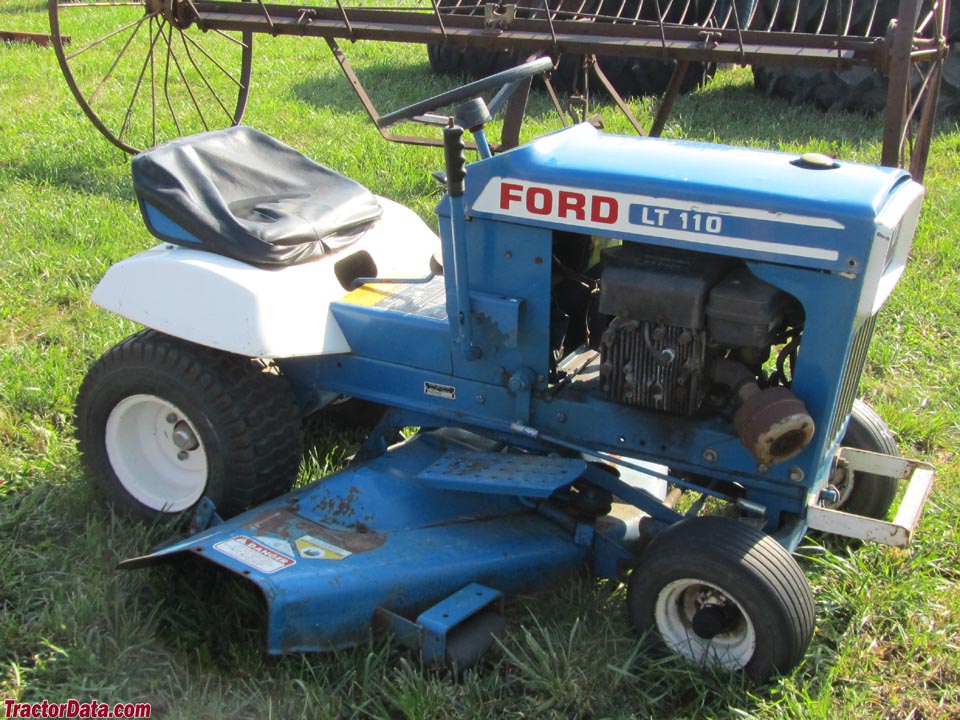

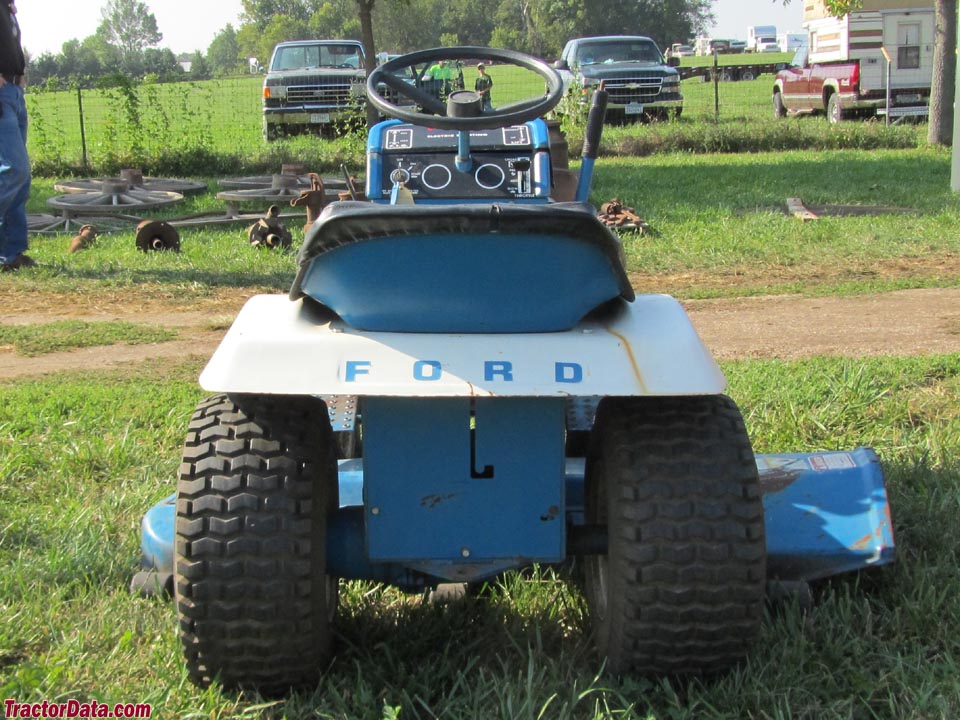

Ford LT-110

Ford LT-110

Ford LT-110

Ford LT-110

Ford LT-110

Ford LT-110

Ford LT-110

Ford LT-110

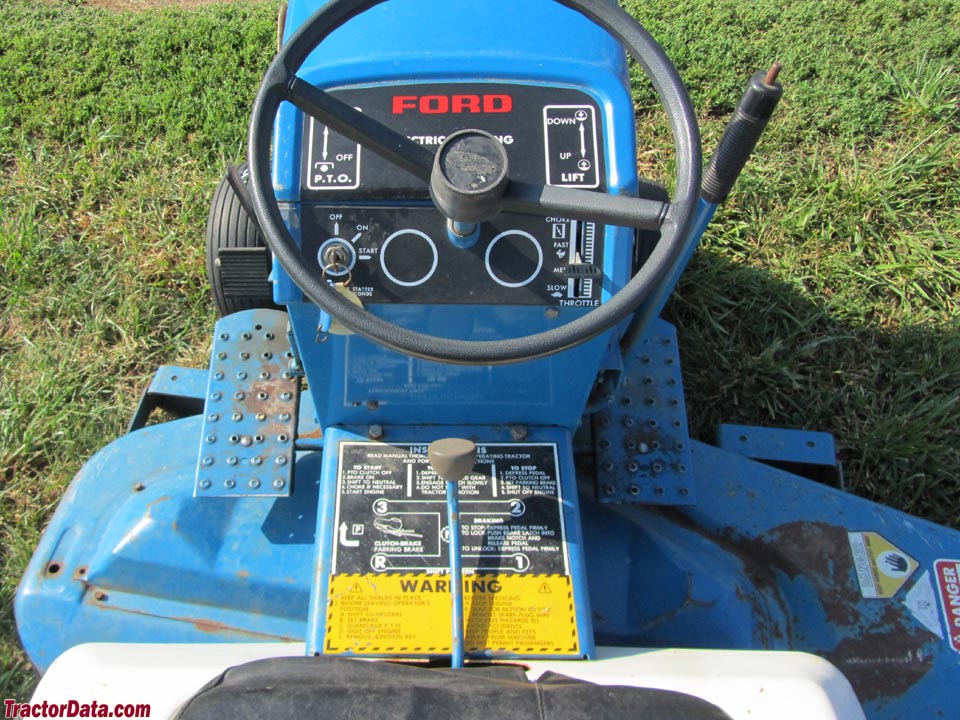

Ford LT 110 operator station and controls.

Ford LT 110 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LT-110.

Estimated Continuous Field Runtime: 1.7 hrs

Approximately 1.7 hours of continuous field operation at ~75% rated power on a full tank (1 gal / 3.8 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ford Lawn Tractors Ford LT-110 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LT-110.

Converted Equivalents:

Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
