Iseki TF17F
The Iseki TF17F is a tractor produced by Iseki. It is equipped with a 61.4 ci 1.0 L engine. The listed engine power is Diesel (listed): 17.3 hp / 12.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1521 lbs 689 kg.
Engine Power
Diesel (listed): 17.3 hp / 12.9 kW
Fuel & Capacities
5.3 gal
20.1 L
Transmission
6 forward and 2 reverse
Operating Weight
1521 lbs
689 kg
Overview
![]() | 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TF17F-U | utility |
TF17HF | high-crop |
Iseki TF17F Engine | |
|---|---|
Iseki 1.0L 3-cyl diesel | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ... | |
Iseki TF17F Transmission | |
|---|---|
6-speed | |
Transmission details ... |
Iseki TF17F Power | |
|---|---|
Engine | 17.3 hp
12.9 kW |
PTO (claimed) | 15.6 hp
11.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Two-post ROPS with canopy. Cab optional. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 524@2500 |
730@2500 | |
1187@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.7 inches
136 cm |
Weight | 1521 lbs
689 kg |
Front tire | 6-12 |
Rear tire | 8.3-20 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 45 |
Engine
![]() | 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Engine Detail — 61.4 ci / 1.0 L Diesel
Manufacturer | Iseki E3100 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.4 ci
1.0 L |
Bore/Stroke | 2.91x3.07 inches
74 x 78 mm |
Power | 17.3 hp
12.9 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
Dimensions
![]() | 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Iseki TF17F Tires | |
|---|---|
Standard tires (ag) | Front: 6-12. Rear: 8.3-20 |
TF17HF Optional tires (ag) | Front: 6.00-12. Rear: 8.3-22 |
Dimensions | |
|---|---|
Wheelbase | 53.7 inches
136 cm |
Length | 98.4 inches
249 cm |
Width | 42.9 inches
108 cm |
Height | 74.4 inches
188 cm |
Weight | 1521 lbs
689 kg |
Ground clearance | 12.2 inches
30 cm |
Front tread | 32.7 inches
83 cm |
Rear tread | 33.5 to 39.4 inches
85 to 100 cm |

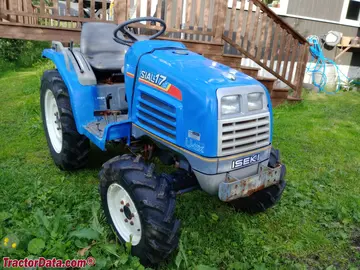

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TF17F based on its 17.3 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TF17F.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TF17F Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TF17F.
Converted Equivalents:
Horsepower (HP)17.3 hp
Kilowatts (kW)12.9 kW
Metric Horsepower (PS / CV)17.5 PS
