Iseki SG17

The Iseki SG17 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 737 cc 45 ci engine. The listed engine power is Diesel (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 871 lbs 395 kg.

Overview

	1995 - ???? Garden tractor
1995 - ????
Garden tractor

1995 - ????
Garden tractor

Production
Manufacturer	Iseki
Garden tractor

Iseki SG17 Engine
17HP Iseki 737cc 3-cyl diesel
Fuel tank	4.5 gal 17.0 L
Engine details ...

Iseki SG17 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	hydrostatic power
Mechanical dry shoe brakes

Hydraulics
Pressure	440 psi 30.3 bar
Total flow	2.6 gpm 9.8 lpm
Steering flow	3 gpm 11.4 lpm

Dimensions & Tires
Weight	871 lbs 395 kg
Front tire	16x6.50-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	8.5
Battery volts	12
Battery AH	35

Engine

	1995 - ???? Garden tractor
1995 - ????
Garden tractor

1995 - ????
Garden tractor

Engine Detail — 737 cc / 45 ci Diesel

Manufacturer	Iseki E374
Fuel Type	Diesel
Configuration	3-cylinder
Displacement	737 cc 45 ci
Power	17 hp 12.7 kW
Starter type	electric
Oil capacity	2.6 qts 2.5 L
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.010 inches 0.254 mm

Transmission

	1995 - ???? Garden tractor
1995 - ????
Garden tractor

1995 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	6.9 qts 6.5 L

Dimensions

	1995 - ???? Garden tractor
1995 - ????
Garden tractor

1995 - ????
Garden tractor

Iseki SG17 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.5-12

Dimensions
Length	70.9 inches 180 cm
Width	40.2 inches 102 cm
Height (steering wheel)	44.9 inches 114 cm
Shipping weight	871 lbs 395 kg

Photos

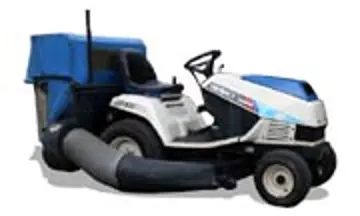

Iseki SG17 tractor photo
