Iseki SGR17

The Iseki SGR17 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 827 cc 50.5 ci engine. The listed engine power is Diesel (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 926 lbs 420 kg.

Overview

	Lawn tractor	Lawn tractor

Production
Manufacturer	Iseki
Lawn tractor

Iseki SGR17 Engine
17HP Iseki 827cc 3-cyl diesel
Fuel tank	4.9 gal 18.5 L
Engine details ...

Iseki SGR17 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	hydrostatic power
Mechanical wet disc brakes

Hydraulics
Pressure	780 psi 53.8 bar
Total flow	3.2 gpm 12.1 lpm

Dimensions & Tires
Weight	926 lbs 420 kg
Front tire	210/60D-8
Rear tire	250/60D-14
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12
Battery AH	42

Engine

Engine Detail — 827 cc / 50.5 ci Diesel

Manufacturer	Iseki E383
Fuel Type	Diesel
Configuration	3-cylinder
Displacement	827 cc 50.5 ci
Power	17 hp 12.7 kW
Starter type	electric
Oil capacity	2.6 qts 2.5 L
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.010 inches 0.254 mm

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.1 qts 6.7 L

Dimensions

Iseki SGR17 Tires
Lawn/turf front	210/60D-8
Lawn/turf rear	250/60D-14

Dimensions
Length	76.2 inches 193 cm
Width	43.3 inches 109 cm
Height (steering wheel)	49.8 inches 126 cm
Shipping weight	926 lbs 420 kg

Photos

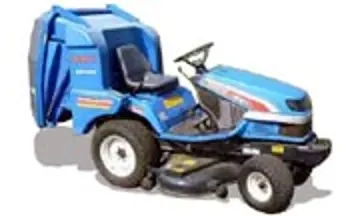

Iseki SGR17 tractor photo
