Iseki SG173

The Iseki SG173 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 737 cc 45 ci engine. The listed engine power is Diesel (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 871 lbs 395 kg.

Engine Power
Diesel (listed): 17 hp / 12.7 kW
Fuel & Capacities
4.5 gal 17.0 L
Transmission
infinite forward and reverse
Operating Weight
871 lbs 395 kg

Overview

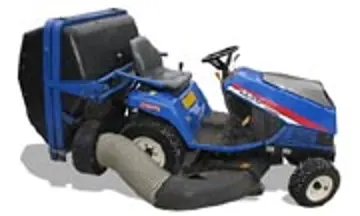

Iseki SG173 tractor photo
1999 - ???? Garden tractor
1999 - ????
Garden tractor
1999 - ????
Garden tractor
Production
Manufacturer
Iseki
Garden tractor
Iseki SG173 Engine
17HP Iseki 737cc 3-cyl diesel
Fuel tank
4.5 gal 17.0 L
Engine details ...
Iseki SG173 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
hydrostatic power
Mechanical dry shoe brakes
Hydraulics
Pressure
440 psi 30.3 bar
Total flow
2.6 gpm 9.8 lpm
Steering flow
3 gpm 11.4 lpm
Dimensions & Tires
Weight
871 lbs 395 kg
Front tire
16x6.50-8
Rear tire
23x10.5-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
8.5
Battery volts
12
Battery AH
35

Engine

Iseki SG173 tractor photo
1999 - ???? Garden tractor
1999 - ????
Garden tractor
1999 - ????
Garden tractor

Engine Detail — 737 cc / 45 ci Diesel

Manufacturer
Iseki E374
Fuel Type
Diesel
Configuration
3-cylinder
Displacement
737 cc 45 ci
Power
17 hp 12.7 kW
Starter type
electric
Oil capacity
2.6 qts 2.5 L
Intake valve clearance
0.010 inches 0.254 mm
Exhaust valve clearance
0.010 inches 0.254 mm

Transmission

Iseki SG173 tractor photo
1999 - ???? Garden tractor
1999 - ????
Garden tractor
1999 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
6.9 qts 6.5 L

Dimensions

Iseki SG173 tractor photo
1999 - ???? Garden tractor
1999 - ????
Garden tractor
1999 - ????
Garden tractor
Iseki SG173 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.5-12
Dimensions
Length
70.9 inches 180 cm
Width
40.2 inches 102 cm
Height (steering wheel)
44.9 inches 114 cm
Shipping weight
871 lbs 395 kg

Photos

Iseki SG173 tractor photo

Iseki SG173 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki Lawn Tractors Iseki SG173 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki Lawn Tractors Iseki SG173.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki Lawn Tractors Iseki SG173 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki Lawn Tractors Iseki SG173.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
