John Deere L130

The John Deere L130 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Tuff Torq K46 HD. Operating weight: 532 lbs 241 kg.

Overview

	2003 - 2005 L100 SeriesLawn tractor
2003 - 2005
L100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $2,599 in 2005

John Deere L130 Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

John Deere L130 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	532 lbs 241 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	16
Battery volts	12
Battery Group	U1

References
Lawn and Garden Product Information Handbook published in 2004, by John Deere
Lawn and Garden Product Information Handbook published in 2005, by John Deere
Operator's Manual L100, L110, L118, L120 and L130 (OMGX21647) published in 2003*
Operator's Manual L100, L108, L111, L118, L120 and L130 (OMGX22058) published in 2005*
100 Series Tractors published in 2003, by John Deere
*Publication contains known errors.

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler CV23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical shaft V-Twin
Displacement	673 cc 41.1 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power (gross)	23 hp 17.2 kW
Air cleaner	dual state
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.225 inches 5.715 mm
Intake valve clearance	0.005 inches 0.127 mm
Exhaust valve clearance	0.010 inches 0.254 mm
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Tuff Torq K46 HD

Transmission	Tuff Torq K46 HD
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.4 qts 2.3 L
Oil change	sealed unit, owner service is not recommended

Dimensions

John Deere L130 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Wheelbase	48.9 inches 124 cm
Length	69 inches 175 cm
Width	36 inches 91 cm
Height	38.6 inches 98 cm
Weight	532 lbs 241 kg

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade

48" Mower deck
Type	mid-mount John Deere
	3-blade with manual lift
Cutting width	48 inches 121 cm
Overall width	50 inches 127 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

John Deere L130, left side.

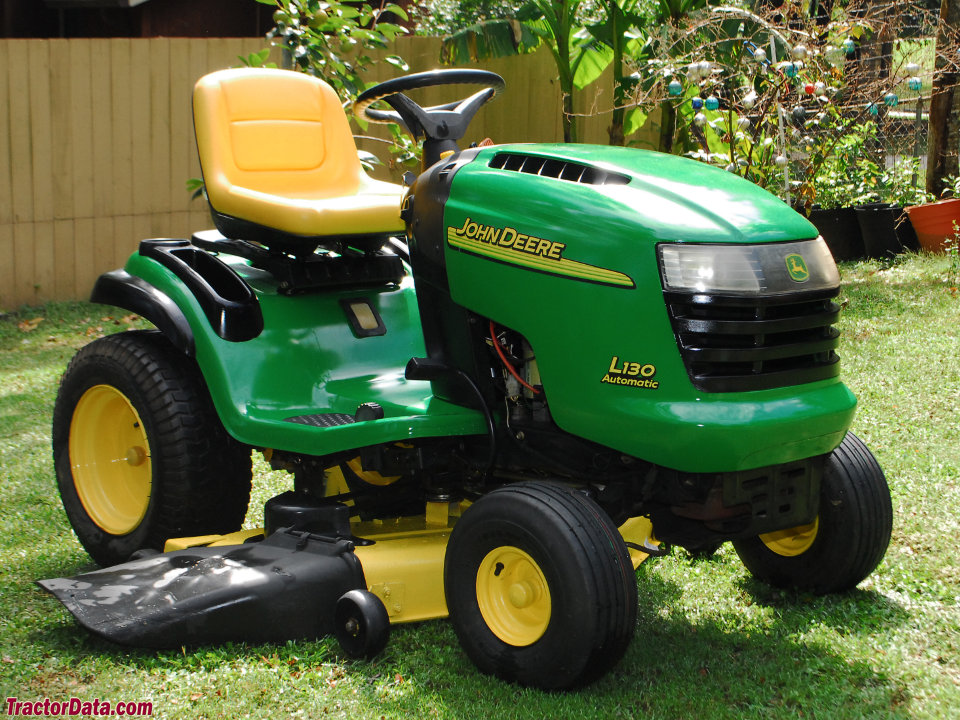

John Deere L130, right side.
