John Deere X350
The John Deere X350 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 603 cc 36.8 ci engine. The rated power output is 18.5 hp 13.8 kW. Transmission: Tuff Torq K46. Operating weight: 464 lbs 210 kg.
Engine Power
18.5 hp
13.8 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Tuff Torq K46
Operating Weight
464 lbs
210 kg
John Deere Lawn Tractors John Deere X350 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2016 - 2025
Model year 2016-20202021-2025
Select X300 SeriesLawn tractor |
|---|---|
2016 - 2025 | |
Model year 2016-20202021-2025 | |
Select X300 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Original price | $3,199 (2016 42-inch ) |
$3,599 (2016 48-inch ) | |
Variants | |
|---|---|
X350 | 2-wheel steering |
X354 | 4-wheel steering |
X350R | rear-discharge |
John Deere X350 Engine | |
|---|---|
18.5HP Kawasaki 603cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
John Deere X350 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Wet disc brakes | |
Open operator station with 15-inch seat. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Weight | 464 lbs
210 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
The Complete Range of Lawn Care Solutions published in 2016, by John Deere | |
Riding Lawn Tractors published in 2017, by John Deere | |
Riding Lawn Tractors published in 2019, by John Deere | |
Riding Lawn Tractors published in 2016, by John Deere | |
Lawn Care Solutions published in 2020, by John Deere | |
Operator's Manual X300 Tractors (OMM174375) published in 2016 | |
Operator's Manual X300 Tractors (OMUC22094) published in 2019 | |
Mow'n Machine Zero-Turn Mowers published in 2010, by Woods | |
Mow'n Machine FZ and FE Series published in 2007, by Woods |
Engine
Engine Detail — 603 cc / 36.8 ci Gasoline
Manufacturer | Kawasaki FS600V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 603 cc
36.8 ci |
Bore/Stroke | 2.87x2.84 inches
73 x 72 mm |
Power (gross) | 18.5 hp
13.8 kW |
Fuel system | carburetor |
Air cleaner | dry with foam precleaner |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.8 qts
1.7 L |
Oil change | 100 h |
Transmission
Transmission — Tuff Torq K46
Transmission | Tuff Torq K46 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
John Deere X350 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Length | 72 inches
182 cm |
Width | 38 inches
96 cm |
Height | 47 inches
119 cm |
Weight | 464 lbs
210 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

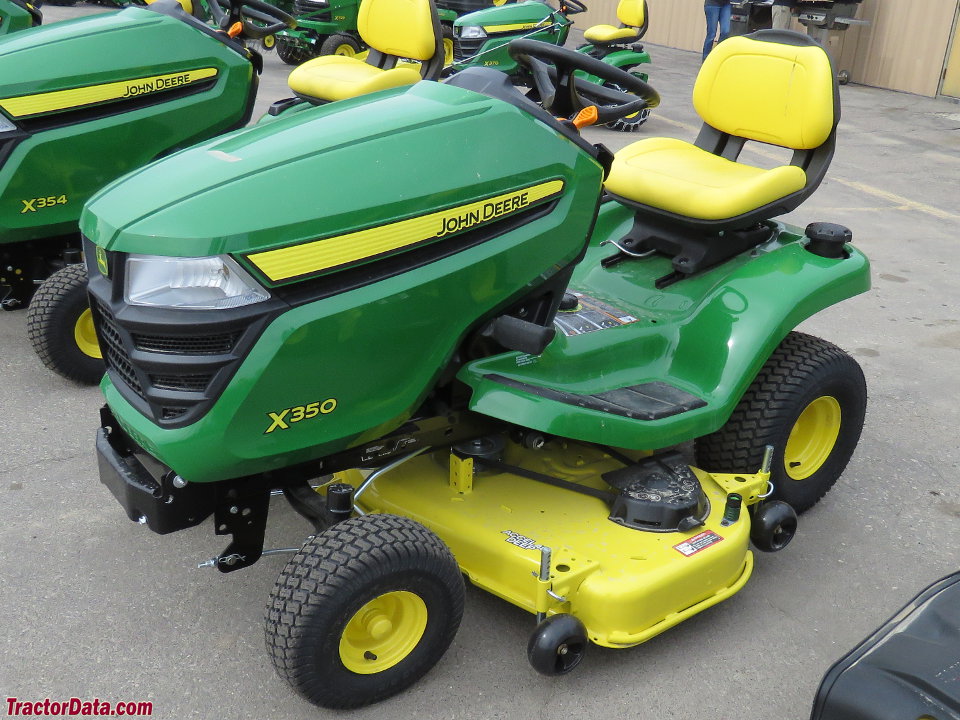

John Deere X350
John Deere X350
