John Deere S240 Sport
The John Deere S240 Sport is a tractor produced by John Deere Lawn Tractors. It is equipped with a 603 cc 36.8 ci engine. The rated power output is 18.5 hp 13.8 kW. Transmission: Tuff Torq K46DP. Operating weight: 458 lbs*Weight with mower deck 207 kg.
Overview
 | 2015 - 2025
Model year 2015-20202021-2025
S200 SeriesLawn tractor |
|---|---|
2015 - 2025 | |
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor | |
2015 - 2025 | |
|---|---|
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Greenville, Tennessee, USA | |
Original price was $2,500 in 2015 | |
John Deere S240 Engine | |
|---|---|
18.5HP Kawasaki 603cc 2-cyl gasoline | |
Fuel tank | 2.4 gal
9.1 L |
Engine details ...  | |
John Deere S240 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
John Deere S240 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Weight | 458 lbs
207 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10.0-8 |
Full dimensions and tires ...  | |
John Deere S240 attachments | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
S240 Serial Numbers | |
|---|---|
Location: | Serial number plate on the rear of the S240. |
2015 | 100001 |
2016 | 700001 |
2017 | 810001 |
2018 | 825001 |
2019 | 850001 |
2020 | 870001 |
2021 | 880001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Riding Lawn Tractors published in 2015, by John Deere | |
Riding Lawn Tractors published in 2017, by John Deere | |
Riding Lawn Tractors published in 2019, by John Deere | |
Riding Lawn Tractors published in 2016, by John Deere | |
Operator's Manual S240 Lawn Tractor (OMUC20530) published in 2018 |
Engine
| 2015 - 2025
Model year 2015-20202021-2025
S200 SeriesLawn tractor |
|---|---|
2015 - 2025 | |
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor | |
2015 - 2025 | |
|---|---|
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor |
Engine Detail | |
|---|---|
Kawasaki FS600V | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 603 cc
36.8 ci |
Bore/Stroke | 2.87x2.84 inches
73 x 72 mm |
Power (gross) | 18.5 hp
13.8 kW |
Fuel system | carburetor |
Air cleaner | foam and paper cartridge |
Compression | 8.1:1 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.8 qts
1.7 L |
Oil change | 100 h |
Transmission
| 2015 - 2025
Model year 2015-20202021-2025
S200 SeriesLawn tractor |
|---|---|
2015 - 2025 | |
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor | |
2015 - 2025 | |
|---|---|
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor |
Transmission | |
|---|---|
Transmission | Tuff Torq K46DP |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
Speeds | |
|---|---|
 |
Dimensions
| 2015 - 2025
Model year 2015-20202021-2025
S200 SeriesLawn tractor |
|---|---|
2015 - 2025 | |
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor | |
2015 - 2025 | |
|---|---|
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor |
John Deere S240 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10.0-8 |
Dimensions | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Length | 75.1 inches
190 cm |
Width | 44.6 inches
113 cm |
Weight | 458 lbs*Weight with mower deck
207 kg |
Front axle | Cast-iron |
Attachments
| 2015 - 2025
Model year 2015-20202021-2025
S200 SeriesLawn tractor |
|---|---|
2015 - 2025 | |
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor | |
2015 - 2025 | |
|---|---|
Model year 2015-20202021-2025 | |
S200 Series | |
Lawn tractor |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

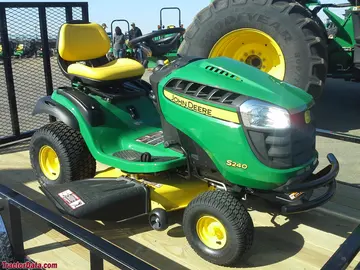

John Deere S240 Sport

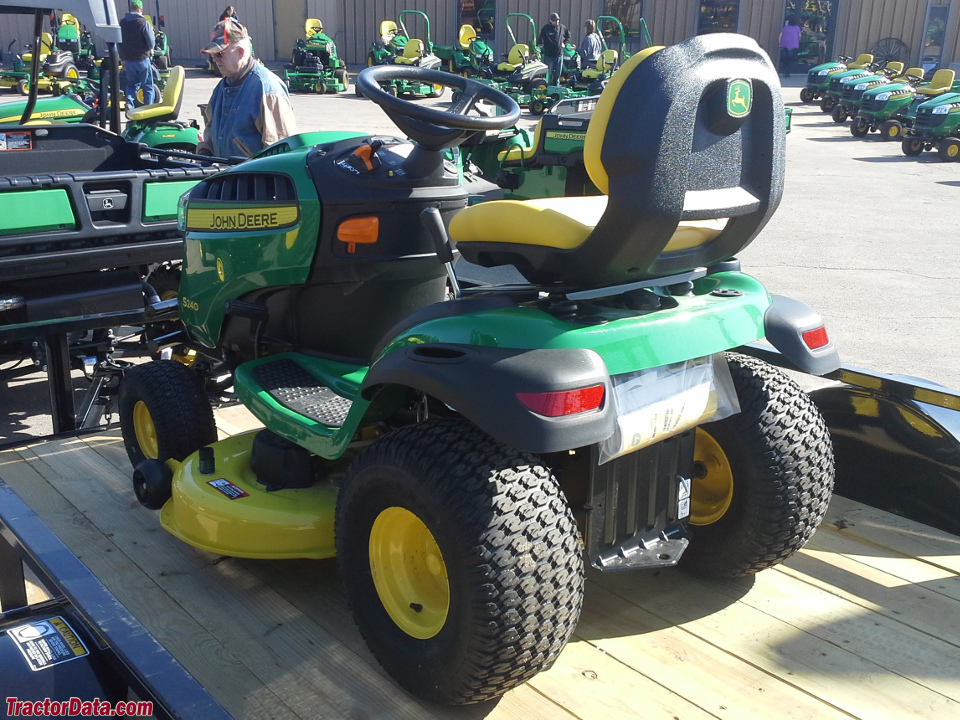

John Deere S240 Sport

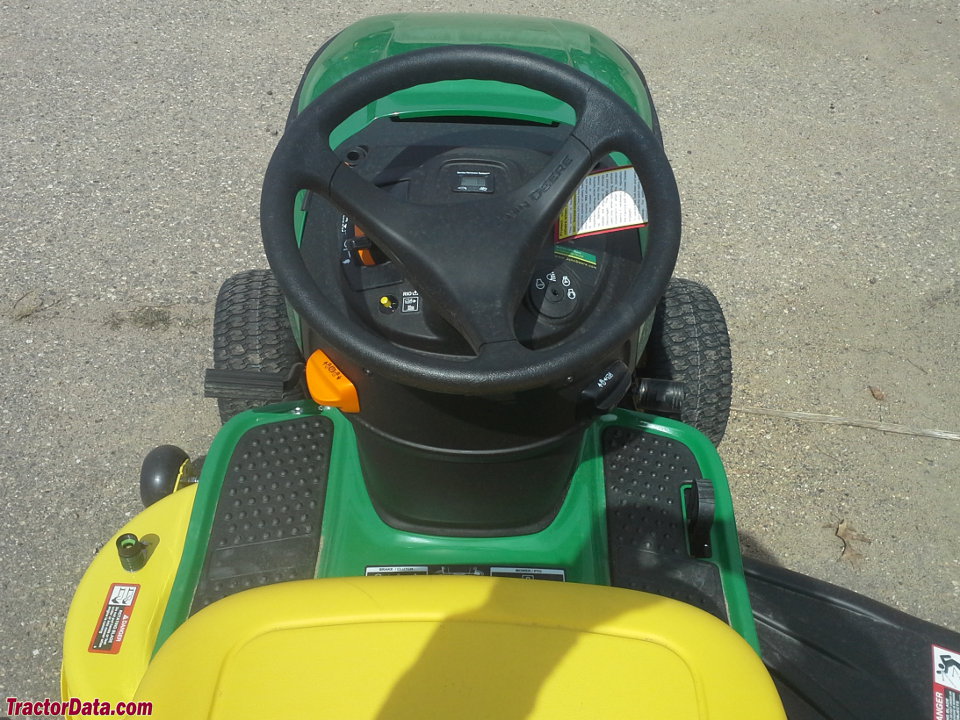

John Deere S240 operator station and controls.
