John Deere LA140

The John Deere LA140 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Tuff Torq K46. Operating weight: 524 lbs 237 kg.

Overview

	2007 LA100 SeriesLawn tractor
2007
LA100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $2,299 in 2007

John Deere LA140 Engine
23HP Briggs & Stratton 724cc 2-cyl gasoline
Engine details ...

John Deere LA140 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	electric

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	524 lbs 237 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery volts	12

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder
Displacement	724 cc 44.2 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power	23 hp 17.2 kW
Air cleaner	paper and foam elements
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

John Deere LA140 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Wheelbase	48.9 inches 124 cm
Length	69.25 inches 175 cm
Width	60 inches 152 cm
Height	45 inches 114 cm
Weight	524 lbs 237 kg

Attachments

48" Mower deck
Type	mid-mount John Deere
	manual lift
Cutting width	48 inches 121 cm

Photos

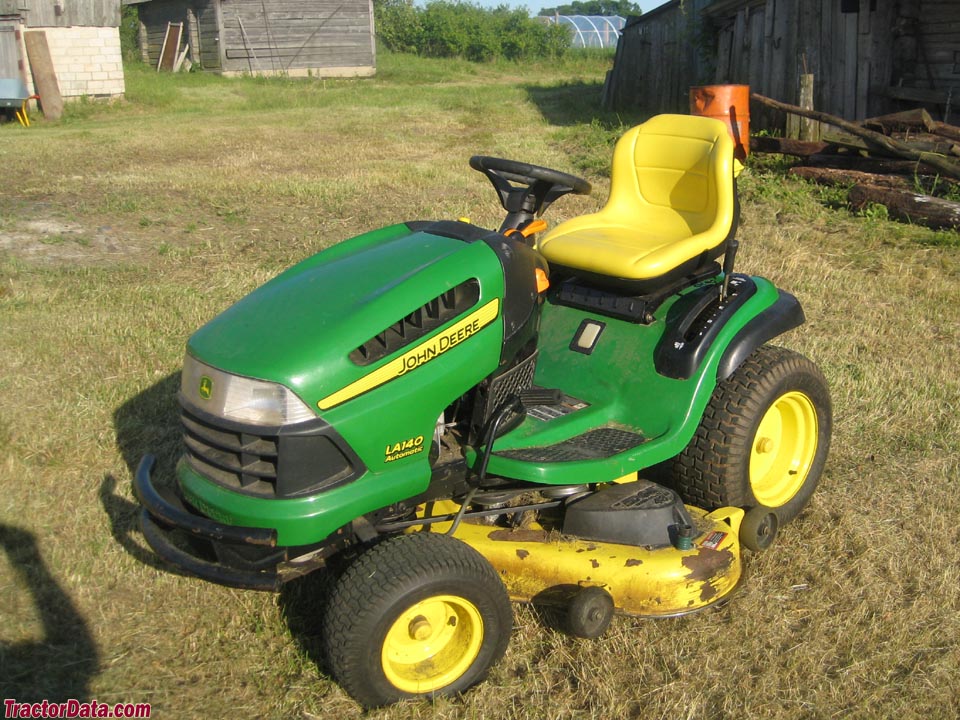

John Deere LA140

John Deere LA140
