John Deere X475

The John Deere X475 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 745 cc 45.5 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW; Gasoline (listed): 1.07 hp / 0.8 kW. Transmission: Tuff Torq K92. Operating weight: 840 to 900 pounds.

Overview

	2002 - 2005 HDGT X SeriesGarden tractor HDGT X Series Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $9,199 in 2002

Variants
X475	2WD two-wheel steer
X475AWS	all-wheel steer
X575	4WD

John Deere X475 Engine
23HP Kawasaki 745cc 2-cyl gasoline
Fuel tank	6.5 gal 24.6 L
Engine details ...

John Deere X475 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
	four-wheel steering on AWS
Integral wet disc brakes
Open operator station. Optional hard and soft-sided cabs. Optional vinyl weather enclosure.

Tractor hitch
Rear Type	0 OptOptional
	1-limited OptOptional
Rear lift	450 lbs 204 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	540
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	54.5 inches 138 cm
Weight	840 to 900 pounds
Front tire	18x8.5-8
Rear tire	26x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery CCA	340
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Lawn and Garden Product Information Handbook published in 2003, by John Deere
Lawn and Garden Product Information Handbook published in 2004, by John Deere
Lawn and Garden Product Information Handbook published in 2005, by John Deere
Premium Lawn and Garden Tractors published in 2004, by John Deere
Lawn and Garden Tractors published in 2000, by John Deere
Lawn and Garden Tractor X465, X475, X485 Operator's Manual (OMM148634) published in 2002
Lawn and Garden Tractor X465, X475, X485 Operator's Manual (OMM150215) published in 2004

Engine

Engine Detail — 745 cc / 45.5 ci Gasoline

Manufacturer	Kawasaki FD671D
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft V-Twin
Displacement	745 cc 45.5 ci
Bore/Stroke	3.07x3.07 inches 78 x 78 mm
Power (gross)	23 hp 17.2 kW
Fuel system	carburetor
Air cleaner	dual paper element
Compression	8.0:1
Rated RPM	3550
Starter volts	12
Starter power	1.07 hp 0.8 kW
Oil capacity	2.1 qts 2.0 L
Oil change	50 h
Coolant capacity	4.2 qts 4.0 L

Transmission

Transmission — Tuff Torq K92

Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
	6 qts (X465 AWS) 5.7 L
Oil type	Low-viscosity HY-GARD
Hydrostatic transmission operator with dual foot pedals. Cruise control on dashboard.

	Low-viscosity HY-GARD

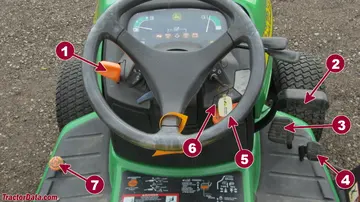

X475 Transmission Controls
1	Throttle
2	Brake
3	Forward
4	Reverse
5	Parking brake
6	Cruise control
7	Differential lock

Dimensions

John Deere X475 Tires
Lawn/turf front	18x8.5-8
Lawn/turf rear	26x12-12

Dimensions
Wheelbase	54.5 inches 138 cm
Length	78.8 inches 200 cm
Width	46.8 inches 118 cm
Height	47 inches 119 cm
2WD Weight	840 lbs 381 kg
AWS Weight	900 lbs 408 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
Snowblower
Blade
Front-end loader
The model 45 loader was not compatible with tractors that had four-wheel steering. The X475 was compatible with a 42-inch (M04390X/M04391X) hydraulic tiller on the three-point hitch. The models 450 and 647 tillers required the three-point hitch and rear PTO.

Photos

John Deere X475 with mower, left side.

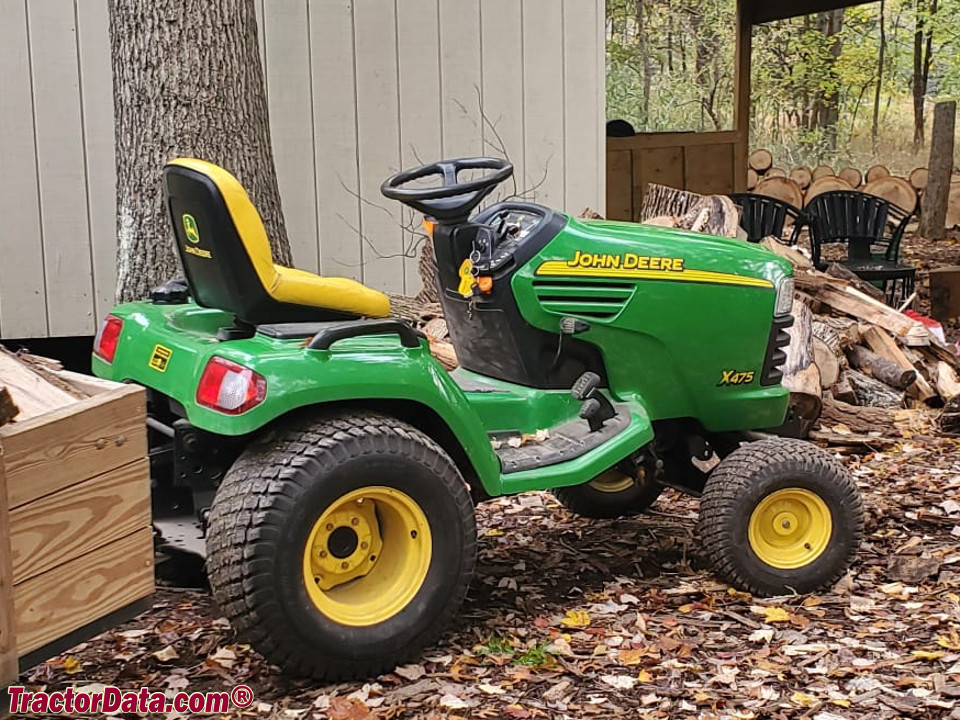

John Deere X475, right side.
