Kubota GL367
The Kubota GL367 is a tractor produced by Kubota. It is equipped with a 113.3 ci 1.9 L engine. The listed engine power is Diesel (listed): 35.5 hp / 26.5 kW. Transmission: 16 forward and reverse. Operating weight: 3175 to 3616 pounds.
Engine Power
Diesel (listed): 35.5 hp / 26.5 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
16 forward and reverse
Operating Weight
3175 to 3616 pounds
Overview
 | 1996 - 2001
GL SeriesCompact Utility tractor
GL Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota GL367 Engine | |
|---|---|
Kubota 1.9L 4-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ...  | |
Kubota GL367 Power | |
|---|---|
Engine | 35.5 hp
26.5 kW |
PTO (claimed) | 31.7 hp
23.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 1907 lbs
865 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 544@2600 |
806@2600 | |
1252@2600 | |
-544@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Weight | 3175 to 3616 pounds |
Front tire | 8-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
GL (T0270-1920-8) published in 1996 |
Engine
Engine Detail — 113.3 ci / 1.9 L Diesel
Manufacturer | Kubota V1903 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.3 ci
1.9 L |
Bore/Stroke | 3.1x3.6 inches
79 x 91 mm |
Power | 35.5 hp
26.5 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |
Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |

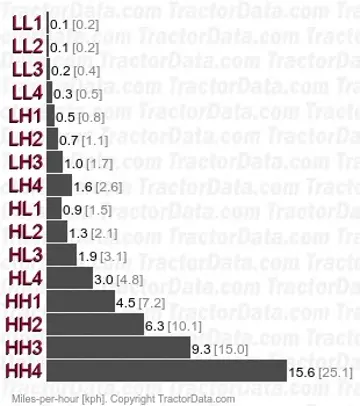

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL367 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4-28 |
Dimensions | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Length | 130.9 inches
332 cm |
Width | 59.1 inches
150 cm |
Height (ROPS) | 85.6 inches
217 cm |
Height (cab) | 84.8 inches
215 cm |
ROPS Weight | 3175 lbs
1440 kg |
Cab Weight | 3616 lbs
1640 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 46.5 to 58 inches
118 to 147 cm |
Photos
Kubota GL367 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota GL367 based on its 35.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota GL367.
Estimated Continuous Field Runtime: 5 hrs
Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (9.3 gal / 35 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota GL367 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota GL367.
Converted Equivalents:
Horsepower (HP)35.5 hp
Kilowatts (kW)26.5 kW
Metric Horsepower (PS / CV)36 PS
Direct Competitor Comparison
Compare Kubota GL367 against same-era industry alternatives in the same horsepower class.
Current Model
Kubota
Kubota GL367
Engine Power:Diesel (listed): 35.5 hp / 26.5 kW
★ Baseline Reference
